Product Brochure

Bookletmaker SPF-200A

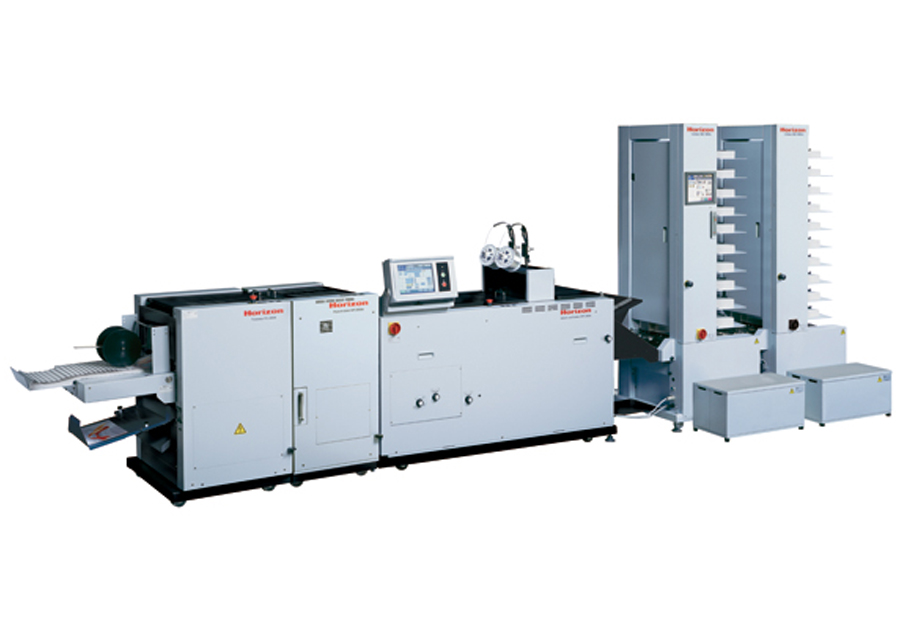

The SPF-200 series bookletmaking system features high productivity, fully automated changeover and user-friendly operation.

Advanced Automation – All necessary settings for a wide variety of booklet formats, ranging from CD to A4 landscape (A4 landscape is available only with SPF-200L) can be performed automatically through the touchscreen display. Even the fold roller gap adjustment is automated. The quick fullyautomatic changeover is suited for effi cient small lot production and leads to a reduction of test sheets.

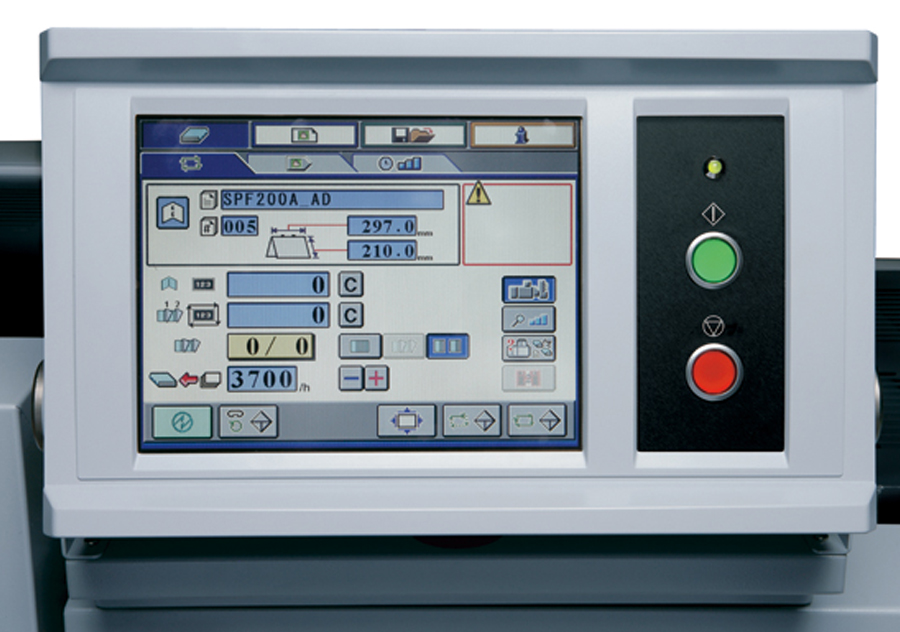

Color Touchscreen for Easy Operation – The 10.4 inch large color touchscreen features an intuitive, icon-based display for easy operation and quick troubleshooting.

Supporting both Digital and Offset Print – The SPF-200 series booklet-making system provides fl exible system confi gurations. The VAC-1000 can be connected for conventional offset print production and the HOF-400 offl ine feeder can be connected to handle digital output.

Cost Savings – The SPF-200 series booklet-making system processes the pre-cut 4-page sheets instead of folded signatures to eliminate the folding process.


High Speed Production – Maximum production speed is 4,500 books per hour with A5 booklets.

Specifications

Model SPF-200A/SPF-200L
Sheet Size SPF-200A
Max. 356 x 508 mm or 14.000” x 20.000”
Min. 120 x 180 mm or 4.725” x 7.090
SPF-200L
Max. 356 x 610 mm or 14.000” x 24.000”
Min. 120 x 180 mm or 4.725” x 7.090”
Sheet Weight Range Normal Paper: 64 to 157 gsm
Art Coated Paper: 84.9 to 157 gsm
Stitch Thickness Top/Side Stitch, Corner Stitch and Fold
Max. 4 mmor 0.155” (About 48 sheets of normal paper 64 gsm)
Production Speed SPF-200A
Max. 4,000 booklets per hour (A4-Finish, Portrait)
Max. 4,500 booklets per hour(A5-Finish, Portrait)
SPF-200L
Max. 4,000 booklets per hour (A4-Finish, Portrait)
Max. 3,500 booklets per hour(A4-Finish, Landscape)
