Delivery Section

AF-406 Series / EF Series

Product Brochure

Delivery Section
AF-406 Series / EF Series

Press Roller Unit PR-40S –Strong and rigid press roller presses the folded sheets to form crisp tight folds. The press stacker can be used with the standing delivery unit ED-40. Tight folded sheets minimize shipping costs by reducing packaging.

Cross Folder KTU-35 –The KTU-35 is equipped with perforation and scoring function. Suitable for direct mail folding. The folded signatures can be directly delivered on the conveyor or the ED-40S can be connected for the standing delivery.

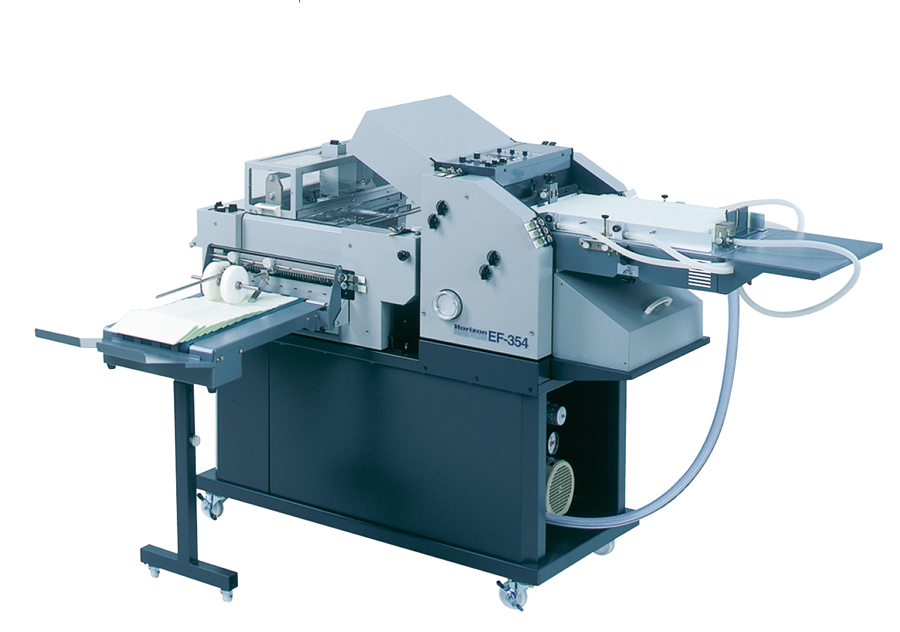

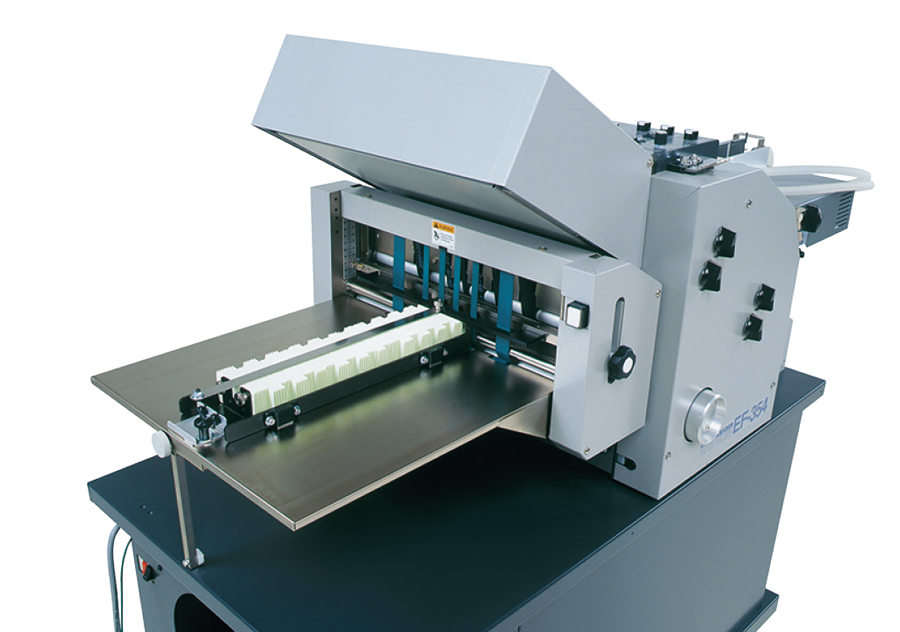

Standing Delivery Unit ED-354 –This stacker has batch separation function. The small size signatures can be stacked vertically for easy handling. (Finished size: 20 to 105 mm)

AF-406 Series / EF Series

* Contact your local dealer about availability of connection.


Name Model Description Factory Option 406F/FL 406S/SL EFseries
Mobile Knife Unit KTU-40
Mobile knife unit with standing delivery.
No
Yes
Yes
No
Bypass Unit KTU-KB
This unit is used as a bypass. (This is an optional device for the KTU-40.)
No
Yes
Yes
No
Parallel Fold Unit KTU-PL
The parallel fold can be performed using the in-feed unit and stopper. (This is an optional device for the KTU-40.)
No
Yes
Yes
No
Press Roller Unit PR-40S
High performance press roller ensures crisp tight folds.
No
Yes
Yes
No
Short Conveyor SCV-406
Space saving delivery conveyor.
No
*
*
No
Standing Delivery ED-40S
Standing delivery unit improves the production efficiency for small sized signatures.
No
Yes
Yes
Yes
Cross Folder KTU-35
Cross knife unit with perforation and scoring function.
No
No
No
Yes
Standing Delivery Unit ED-354
Standing delivery unit.
No
No
No
Yes
