Folder Options

AFC-56 Series / AF-566T4F

Product Brochure

Folder Options
AFC-56 Series / AF-566T4F

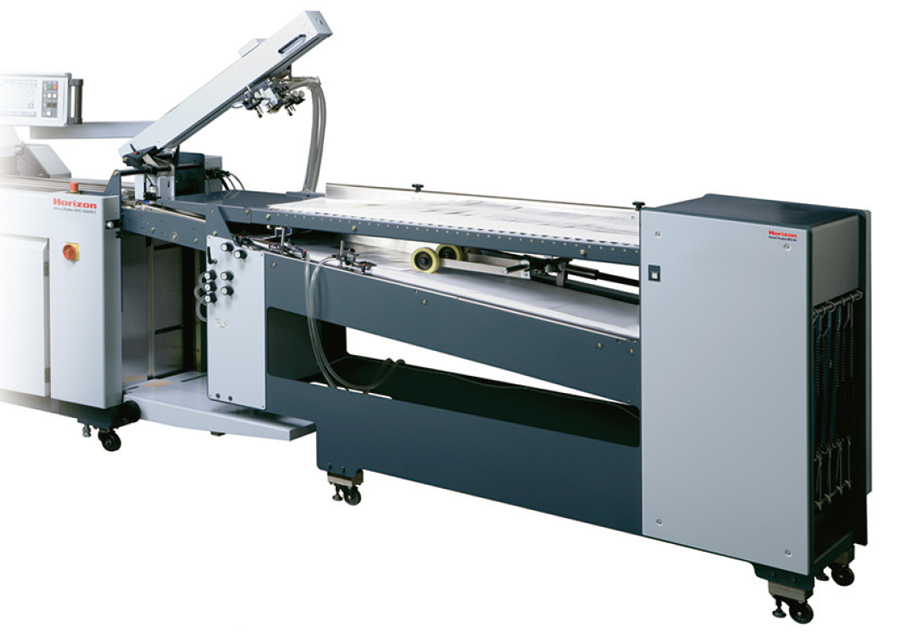

Round Pile Feeder Unit RFU-54 – The RFU-54 can be attached or detached without removing the standard flat pile feed table, making it quick and easy to interrupt long runs for short-run jobs. An error feed tray is equipped for continuous feeding operation.

Supersonic Detector SD-56 –Optional supersonic detector is available for double feed detection. This detects space between sheets for accurate double feed detection even with a solid black printed sheet.

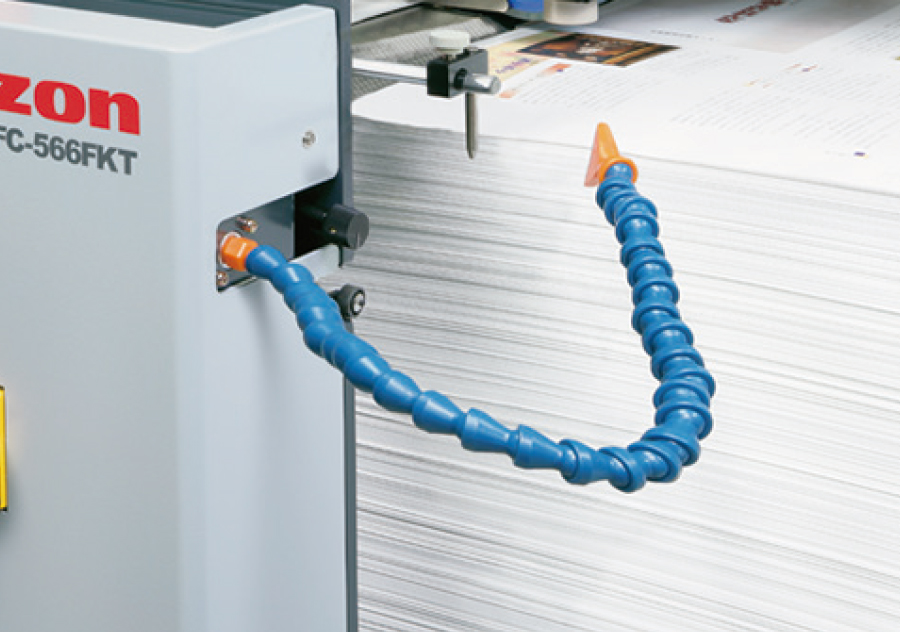

Side Blowing Unit – The optional side are can be installed to assist constant feeding with for difficult to feed paper stocks.

AFC-56 Series / AF-566T4F

* Contact your local dealer about availability of connection.


Name Model Description Factory Option 566F 566AKT 564AKT 566T4F
Round Pile Feeder Unit RFU-54
Mobile round pile feeder.
No
Yes
Yes
Yes
Yes
Extension Table LT-56
Enables to load sheets up to 1,100 mm(43.3") long.
No
No
Yes
Yes
No
Extension Table LT-56F
Enables to load sheets up to 1,100 mm(43.3") long.
Yes
Yes
No
No
Yes
Supersonic Detector SD-56
Detects space between sheets for accurate double feed detection even with a solid black printed sheet.
No
Standard
Yes
Yes
Standard
Side Blowing Unit
Side blowing assist air for stable feeding.
No
Standard
*
*
Standard
Image Checker
A camera scans the printed image to identify any blank or misloaded sheets.
No
*
*
*
*
Barcode Reader
Barcode scanning at resistor table for higher security control.
No
*
*
*
*
Ionizer
The ionizer reduces the static on the paper to minimize static related feed/folding issues.
No
*
*
*
*
Gluing Unit CGUK56+ CGU-50
Gluing gun and controller to produce glued booklet.
No
Yes
Yes
Yes
Yes
Front Perforation Unit FP-56
Front perforation unit. Only available as factory option.
Yes
Yes
Yes
Yes
Yes
Skip Perforation Unit JM-AFC
Skip perforation unit. only available with FP-56.
No
*
*
*
*
Strip Trim Device AF-ST5/AF-ST5N
Strip trimming after the parallel fold section for multiple jobs.
No
Yes
Yes
Yes
Yes
Edge Trim Device AF-ET5/AF-ET5N
Edge trimming for the parallel fold section.
No
Yes
Yes
Yes
Yes
Punch Perforation Unit AF-PP5
Punch perforation for 8 or 12 page signature for deep glue penetration when producing perfect bound book.
No
Yes
Yes
Yes
No
Punch Perforation Unit AF-PP5N
Punch perforation for 8 or 12 page signature for deep glue penetration when producing perfect bound book.
No
Yes
Yes
Yes
Yes
Strip Trim Device below Knife KT-ST5
Strip trimming after the cross fold section for multiple jobs.
No
*
*
*
No
Strip Edge Trim Device below Knife CGU-T56F
Strip and edge trimming for 8-page or 12-page signatures
No
Yes
No
No
No
Strip Edge Trim Device below Knife CGU-T56
Strip and edge trimming for 8-page or 12-page signatures
No
No
Yes
Yes
No
Edge Trim Device below Knife CGU-T56FN
Edge trimming for 8-page or 12-page signatures.
No
Yes
No
No
No
Edge Trim Device below Knife CGU-T56N
Edge trimming for 8-page or 12-page signatures.
No
No
Yes
Yes
No
Punch Perforation Unit below 1st Knife KT-PP56
Punch perforation for 16-page signatures with cross knife unit connection.
No
Yes
Yes
Yes
No
Alignment Detector
Alignment detection on register conveyor.
No
No
No
No
*
Scoring Navigator AF-SN56
The scoring position can be set easily according to the selected fold patterns and sizes.
No
No
No
No
Yes
Gate Fold Buckle GFB-56
Gate fold buckle to produce closed gate fold application.
No
Yes
Yes
Yes
Yes
Hard Urethane Roller for Parallel Fold
The wear-resistant hard urethane rollers. (segmented)
No
*
*
*
*
Sound-Proof Cover (Full Cover) AF-FCV566
The sound proof cover achieves quiet and safe operation.
Yes
Standard
AF-FCV566 Yes
AF-FCV564 Yes
Standard
Sound-Proof Cover (Full Cover) AF-FCV564
The sound proof cover achieves quiet and safe operation.
Yes
Standard
AF-FCV566 Yes
AF-FCV564 Yes
Standard
Sound -Proof Cover (Upper Cover) AF-UCV566
The sound proof cover achieves quiet and safe operation. This cove is available only for the buckle chute section.
Yes

AF-UCV566 Yes
AF-UCV564 Yes

Sound -Proof Cover (Upper Cover) AF-UCV564
The sound proof cover achieves quiet and safe operation. This cove is available only for the buckle chute section.
Yes

AF-UCV566 Yes
AF-UCV564 Yes

Flat Deflector (Parallel)
The flat type deflector. Replaces the parallel folding buckle.
No
Yes
Yes
Yes
Yes
Flat Deflector (Below Knife)
The flat type deflector. Replaces the buckle below knife.
No
Yes
Yes
Yes
No
