Folder Options

AF-76 Series / AFC-74 Series

Product Brochure

Folder Options
AF-76 Series / AFC-74 Series

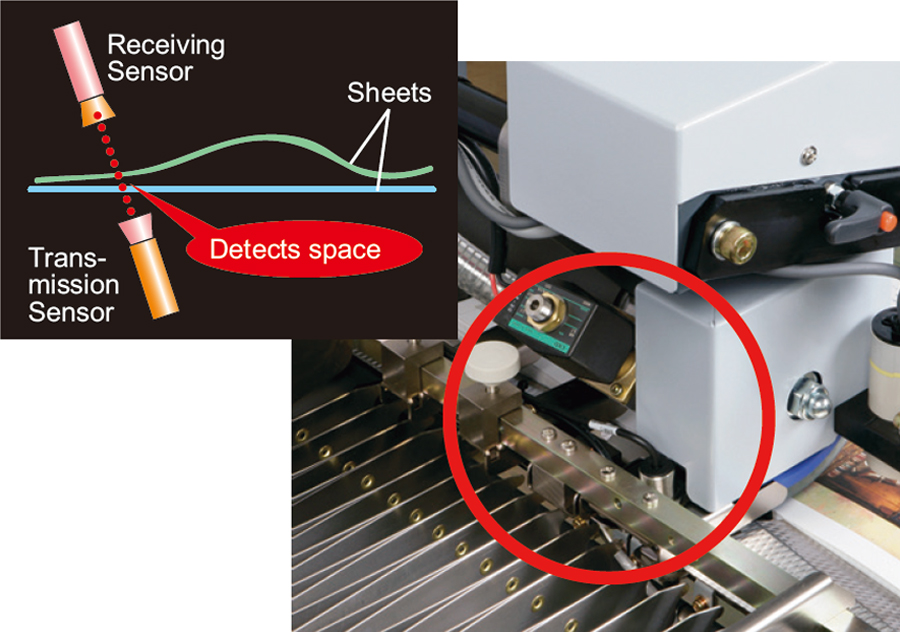

Supersonic Detector SD-74F / SD-74R / SD-74P –Optional supersonic detector is available for double feed detection. This detects space between sheets for accurate double feed detection even with a solid black printed sheet.

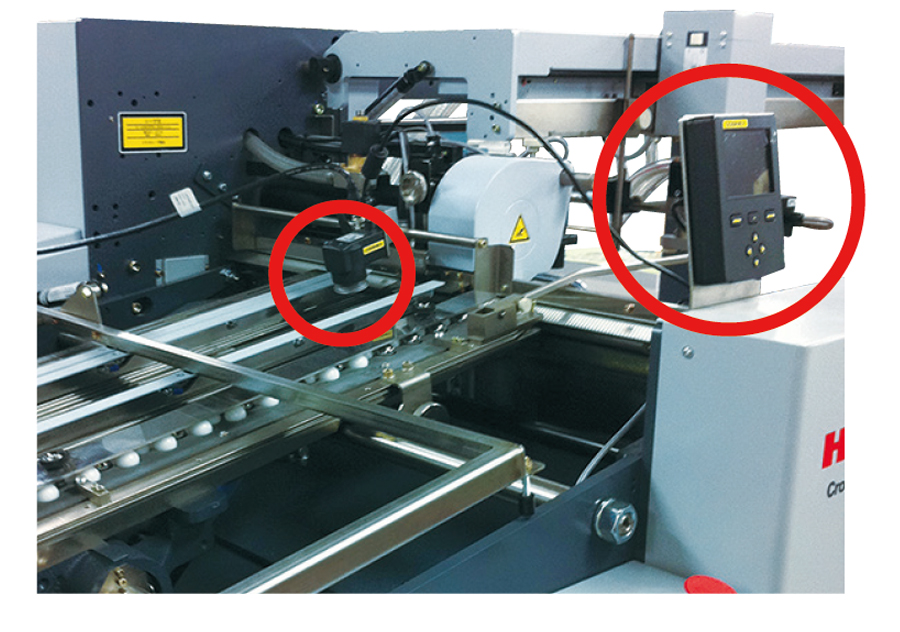

Image Checker –The camera checks the printed sheets to prevent errors such as sheet loading error and printing error.

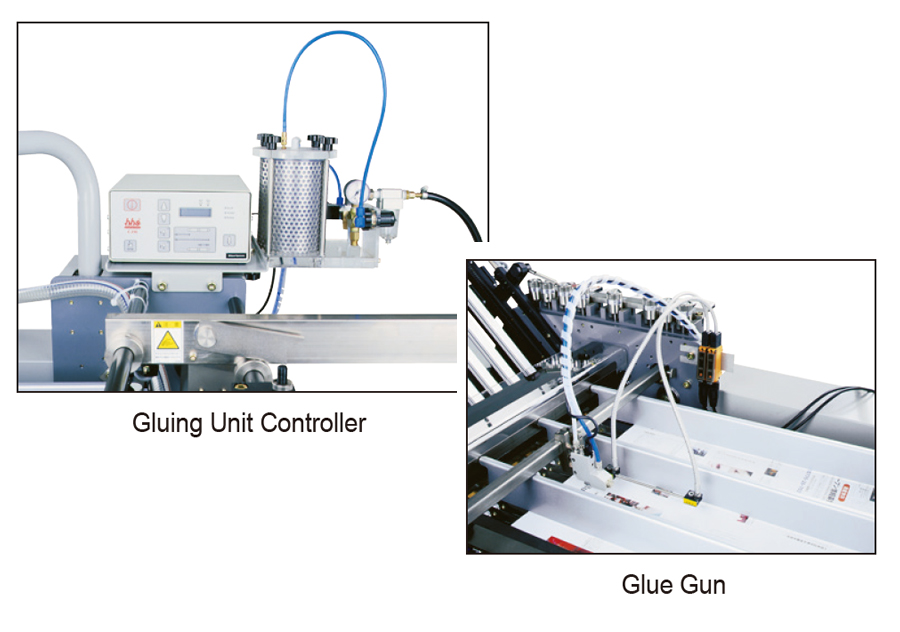

Gluing Unit CGU-50 – The gluing unit can produce 8-page or 12-page glued booklets and direct mail applications.

AF-76 Series / AFC-74 Series


* Contact your local dealer about availability of connection.

Name Model Description Factory Option 762KL 762KLL 764AKL 764AKLL 762KLS 746F 746S/D 744A/S
Supersonic Detector SD-74F / SD-74R / SD-74P
Detects space between sheets for accurate double feed detection even with a solid black printed sheet.
No
*
*
*
*
Standard
Standard
Yes
Yes
Image Checker -
A camera scans the printed image to identify any blank or misloaded sheets.
No
*
*
*
*
*
*
*
*
Barcode Reader -
Barcode verification and misprint detection.
No
*
*
*
*
*
*
*
*
Feed Table Guide Bar -
The guide bar helps to load the sheets to improve the operation. Only available for flat feeder FFU-76M.
No
*
Only for FFU
* Only for FFU
* Only for FFU
* Only for FFU
No
No
No
No
Side Air on rear side -
Additional side air to assist stable feeding. Only available for flat feeder FFU-74M.
No
* Only for FFU
* Only for FFU
* Only for FFU
* Only for FFU
*
No
No
No
Gluing Unit CGU-K74 + CGU-50
Gluing gun and controller to produce glued booklet.
No
*
*
*
*
*
Yes
Yes
No
Front Perforation Unit FP-74
Front perforation unit. Available only as factory option.
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Skip Perforation Unit -
Skip perforation unit. only available with FP-74.
No
*
*
*
*
*
*
*
*
Strip Trim Device AF-ST6
Strip trimming after the parallel fold section for multiple- up jobs.
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Edge Trim Device AF-ET6
Edge trimming for the parallel fold section.
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Punch Perforation Unit AF-PP6
Punch perforation for 8 or 12 page signature for deep glue penetration when producing perfect bound book.
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Strip Trim Device below 1st Knife KT-ST6
Strip trimming after the cross fold section for multiple- up jobs.
No
No
No
No
No
No
Yes
Yes
Yes
Edge Trim Device below 1st Knife KT-ET6
Edge trimming for the parallel fold section.
No
No
No
No
No
No
*
Yes
Yes
Punch Perforation Unit below 1st Knife KT-PP6
Punch perforation for 16-page signatures with cross knife unit connection.
No
No
No
No
No
Yes
Yes
Yes
Yes
Punch Perforation Unit below 1st Knife K1-PP7
Punch perforation for 16-page signatures with cross knife unit connection.
No
Yes
Yes
Yes
Yes
No
No
No
No
Punch Perforation Unit below 2nd Knife K2-PP7
Punch perforation for 32-page signatures with cross knife unit connection. Only available with MS-2K.
No
Yes
Yes
Yes
Yes
No
No
No
No
Perforation Unit below 2nd Knife MS-2K
Slit perforation and scoring for 32-page signatures.
No
No
No
No
No
No
Yes
Yes
Yes
Perforation Unit below 2nd Knife -
Slit perforation and scoring for 32-page signatures.
No
Standard
Standard
Standard
Standard
No
No
No
No
Gate Fold Buckle GFB-74
Gate fold buckle to produce closed gate fold application.
No
No
No
No
No
No
Yes
Yes
Yes
Gate Fold Buckle GFB-76
Gate fold buckle to produce closed gate fold application.
No
No
No
Yes
Yes
No
No
No
No
Hard Urethane Roller for Parallel Fold -
The wear-resistant hard urethane rollers. (segmented)
No
*
*
*
*
*
*
*
*
Deflector below Knife KT-D74
Deflector which can be installed instead of buckle.
No
No
No
No
No
No
Standard
Standard
Standard
Buckle below Front Knife KT-120
Maximum folding size is 120 mm. Manual type and automated type are available. This can be used on the front or rear side.
No
No
No
No
No
No
Standard
Standard
Standard
Buckle below Rear Knife KT-250
Maximum folding size is 250 mm. Manual type and automated type are available. This can be used on the rear side only.
No
No
No
No
No
No
Standard
Standard
Standard
