AF-76 series

Cross Folder

Product Brochure

Cross Folder AF-76 series

8-page, 16-page, and 32-page cross folding are produced with high precision. The AF-76 series folders are specially built for signature production.

A wide variety of folding patterns – 8-page, 16-page, and 32-page cross folding can be processed by the combination of the parallel buckle fold plates and the cross-fold knife to fit your needs.

User friendly Operation – Each buckle plate and knife stopper in the AF-764AKLL / 764AKL is set automatically by selecting the sheet size and fold pattern on the LCD touchscreen. On the AF-762KLL / 762KL, the graphical touchscreen navigates you through set-up procedures for easy operation.

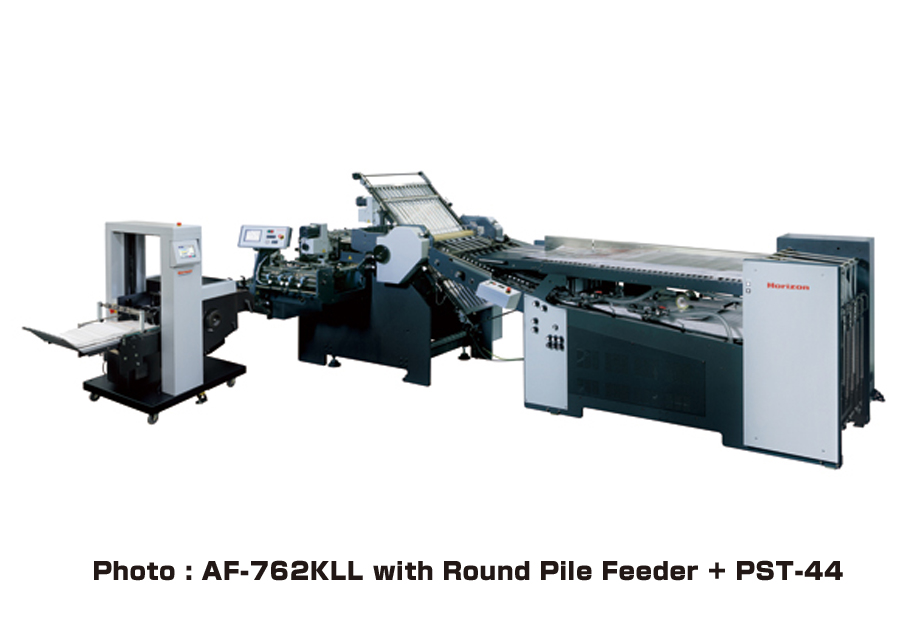

Three types of feed units – 3 different types of feed units can be selected for various work environments: Flat Pile Feeder, Pallet Pile Feeder and Round Pile Feeder.

Various Options – Various options such as the MKU-38 mobile knife unit and the T-564A automated buckle unit are available to handle a wide range of applications.

Specifications

Model AFC-492
Machine Structure 764AKLL 764AKL : 4 Buckles + 3 Fold Knives / 4 Buckles + 2 Fold Knives
762KLL 762KL : 2 Buckles + 3 Fold Knives / 2 Buckles + 2 Fold Knives
Sheet Size (Width x Length) Flat Pile Feeder : Max. 760 x 1,100 mmor 29.920” x 43.310” Min. 210 x 210 mmor 8.270” x 8.270”
Pallet Pile Feeder : Max. 760 x 1,100 mmor 29.920” x 43.310” Min. 210 x 210 mmor 8.270” x 8.270”
Round Pile Feeder : Max. 760 x 1,100 mmor 29.920” x 43.310” Min. 210 x 148 mmor 8.270” x 5.830”
Sheet Weight Range Uncoated Paper 35 to 209 gsm
Coated Paper 50 to 232 gsm
Belt Speed 30 to 240 meters per minute
99 to 787 feet per minute
Production Speed Suction Head 40,000 cycles per hour
Knife 28,000 cycles per hour
