Product Brochure

Buckle Folder
AF-408F

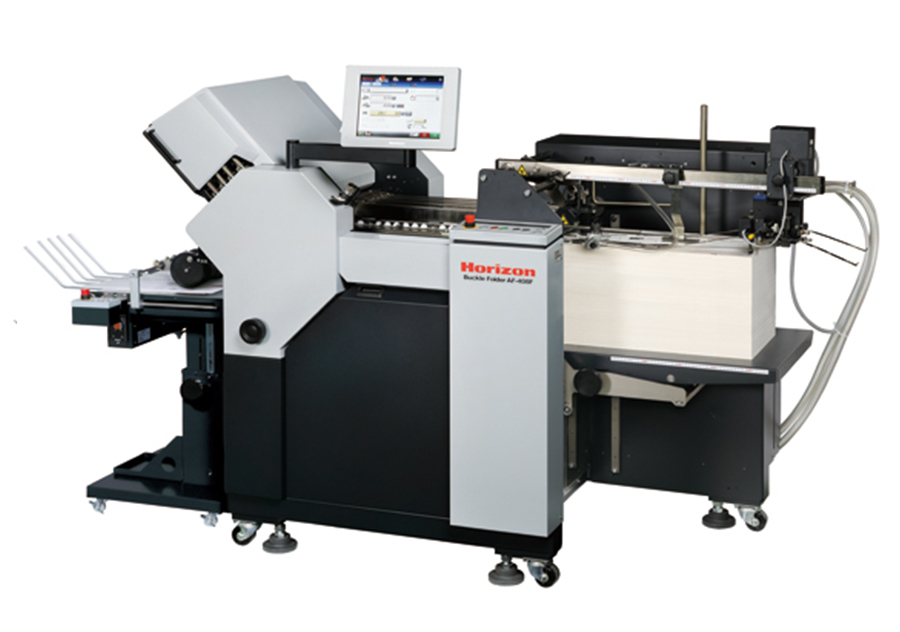

FULLY AUTOMATED SMALL FORMAT 8 BUCKLE FOLDER.

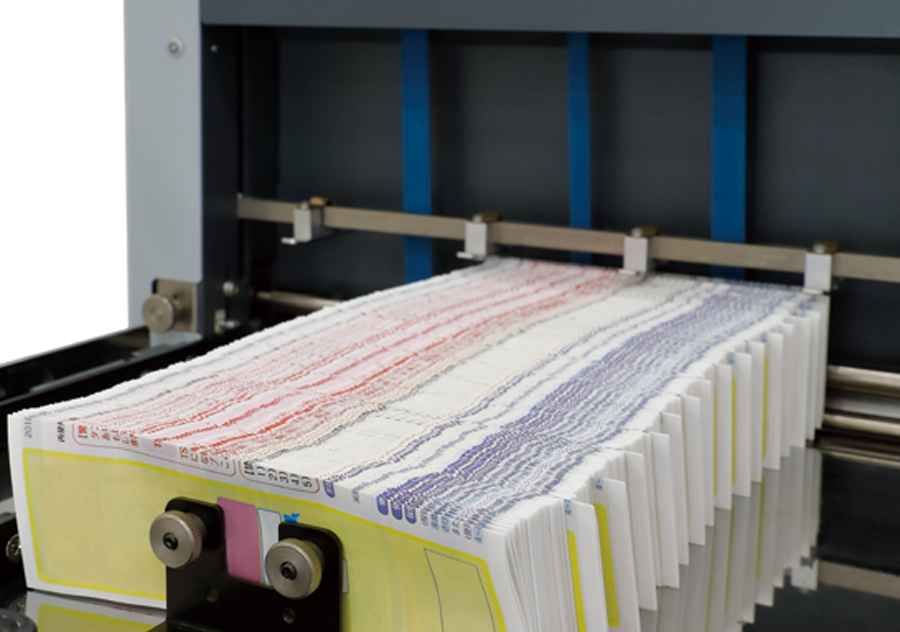

FULLY AUTOMATED 8-BUCKLE FOLDER – Each section is set automatically by selecting the sheet size and fold pattern on the touchscreen. Separate feed and delivery counters provide accurate piece production for critical jobs such as pharmaceutical, medical tool, and packaging.

EASY SETUP – The scoring navigator enables quick, accurate setup of scoring and perforation positions.

APPLICATION FLEXIBILITY –8-buckle configuration allows a wider range of applications from simple to complex fold patterns. Common fold patterns can be selected from the touchscreen for easy setup.

Specifications

Model	AF-408F

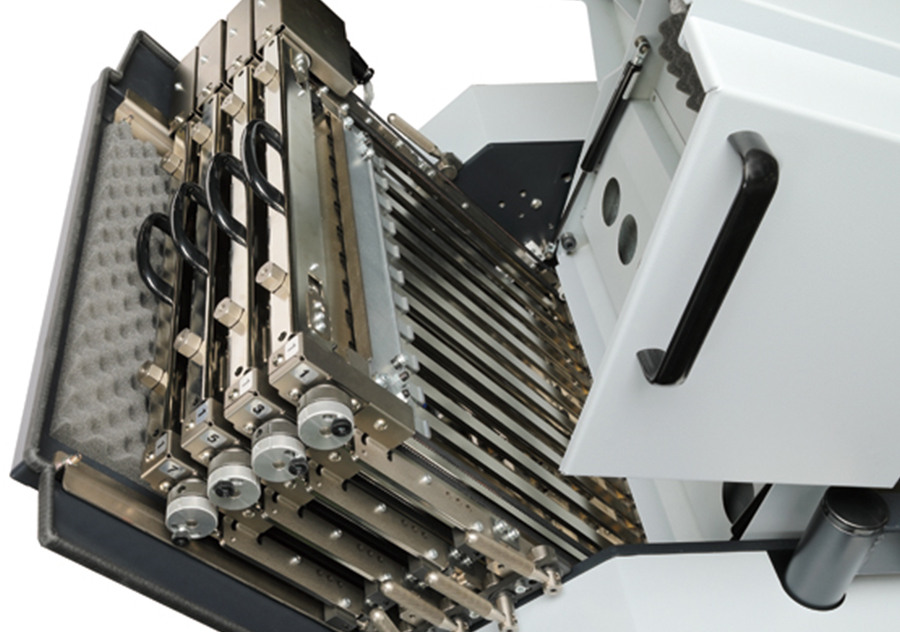

Machine Structure	8 Buckles
Sheet Size (Width x Length)	Max. 430 mm x 660 mm or 16.92” x 25.98” Up to 900 mm with optional device LT-40S Min. 50 mm x 100 mm or 1.97” x 3.94” Up to 60 mm with optional device
Sheet Weight Range	Uncoated Paper 33 to 157 gsm Coated Paper 73 to 157 gsm
Belt Speed	30 to 180 meters per minute or 98 to 590 feet per minite
Production Speed	Suction Head 30,000 cycles per hour
Machine Dimensions	W2,168 x D922 x H1,487 mm or W85.4” x D36.3” x H58.6”
