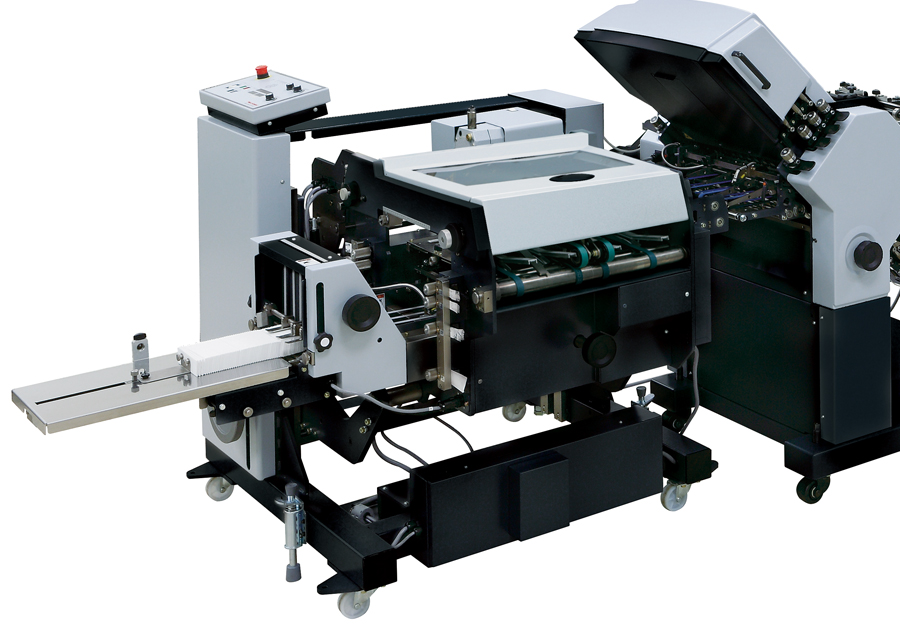

Mobile Knife Unit KTU-40 –A broad range of applications can be performed with the mobile knife unit. Both right angle and parallel direction can be processed depending on folding patterns. *Optional conveyor KTU-PL is required for parallel configuration. Standing delivery is equipped as standard for easy handling of folded sheets. Buckle below knife can be set for greater application flexibility.

Press Roller Unit PR-40S –Strong and rigid press roller presses the folded sheets to form crisp tight folds. The press stacker can be used with the standing delivery unit ED-40. Tight folded sheets minimize shipping costs by reducing packaging.

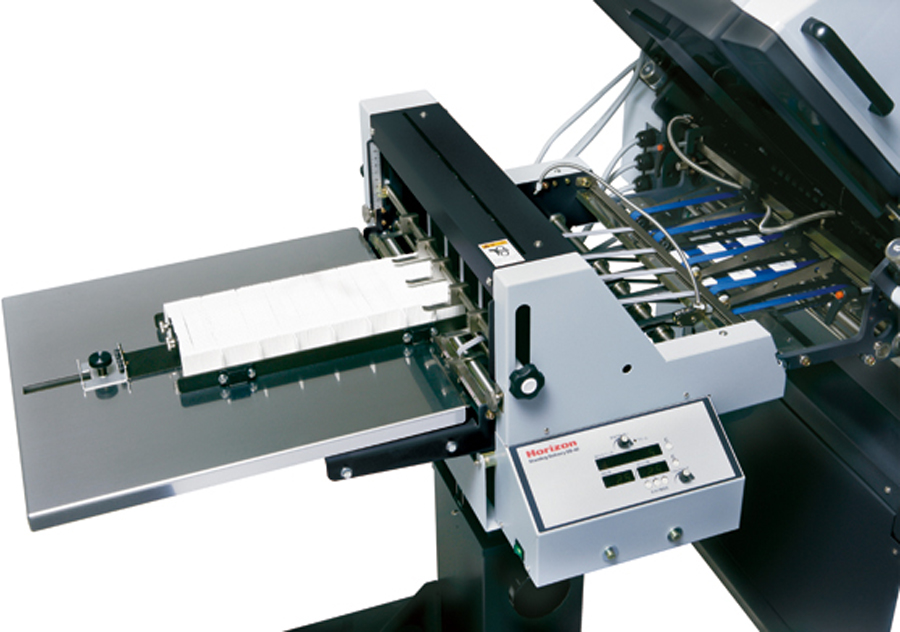

Cross Folder KTU-35 – The KTU-35 is equipped with perforation and scoring function. Suitable for direct mail folding. The folded signatures can be directly delivered on the conveyor or the ED-40S can be connected for the standing delivery.

Standing Delivery Unit ED-354 – This stacker has batch separation function. The small size signatures can be stacked vertically for easy handling. (Finished size: 20 to 105 mm)

Delivery Section AF-406 Series / EF Series


Name Model Description Factory Option 406F/FL 406S/SL EFseries
Mobile Knife Unit KTU-40
Mobile knife unit with standing delivery.
No
Yes
Yes
No
Parallel Fold Unit KTU-PL
The parallel fold can be performed using the in-feed unit and stopper. (This is an optional device for the KTU-40.)
No
Yes
Yes
No
Bypass Unit KTU-KB
This unit is used as a bypass. (This is an optional device for the KTU-40.)
No
Yes
Yes
No
Press Roller Unit PR-40S
High performance press roller ensures crisp tight folds.
No
Yes
Yes
No
Short Conveyor SCV-406
Space saving delivery conveyor.
No
*
*
No
Standing Delivery ED-40S
Standing delivery unit improves the production efficiency for small sized signatures
No
Yes
Yes
Yes
Cross Folder KTU-35
Cross knife unit with perforation and scoring function.
No
No
No
Yes
Standing Delivery Unit ED-354
Standing delivery unit.
No
No
No
Yes
