Product Brochure

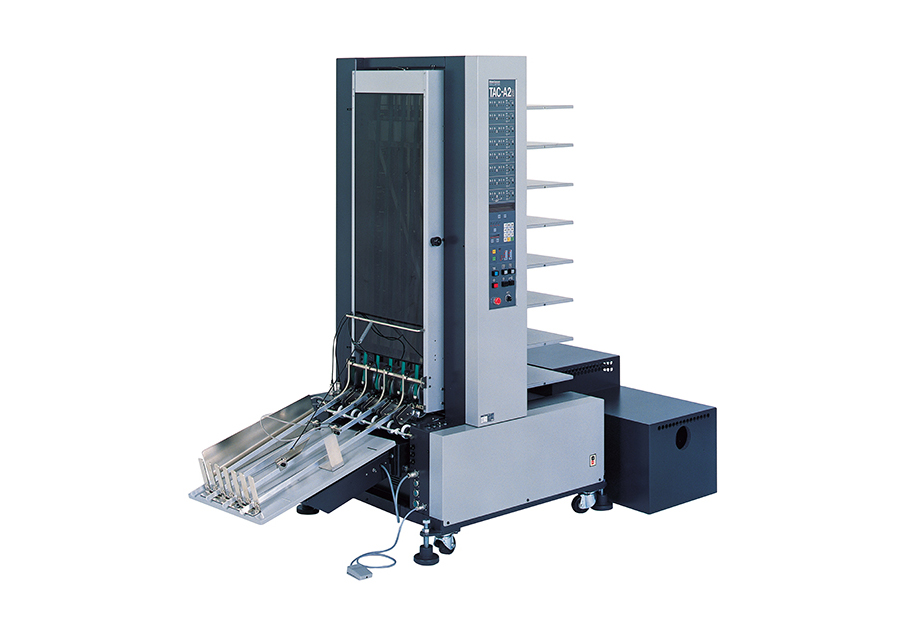

Air-Suction Collator TAC-8

The machine that enables collation of any number of sets, with increased paper variety.

– TAC is capable of accommodating the collation of large format (up to A2 size) forms and calendars printed on a variety of paper from the very light poor quality to heavy coated and textured sheets.

– Even when collating the largest sheet sizes, it is possible to achieve up to 3,200 sets per hour from a single tower. Speeds are electronically variable to accommodating even the most difficult papers with ease.

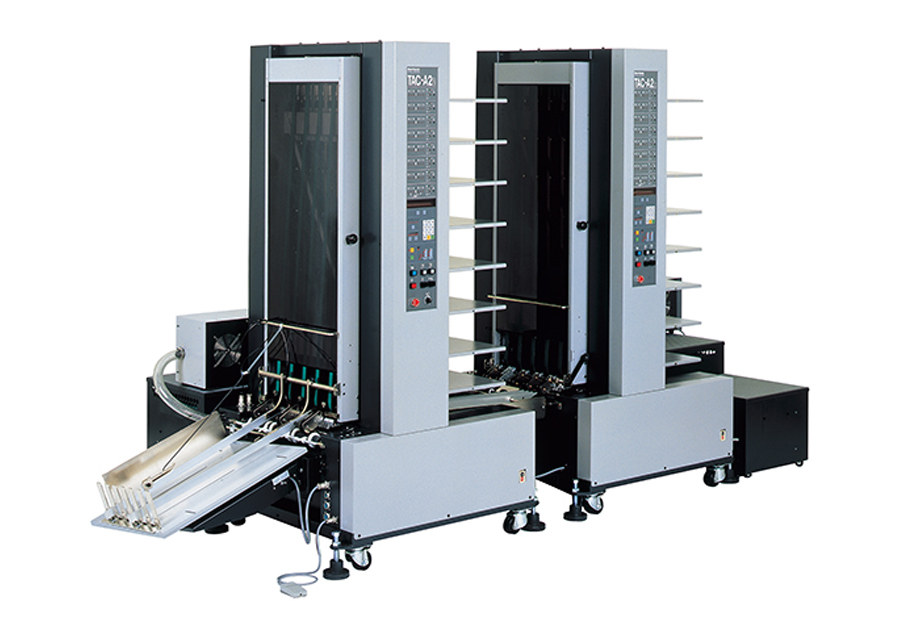

– An added plus for large, coated-paper calendar jobs, the TAC series can be combined to form a 16-bin configuration, for one-step collations.

– Horizon’s monitoring system indicates the precise locating in the event of an error, so that problems can be detected with ease from start to finish.

Specifications

Model TAC-8
Number of Bins 8 bins / 16 bins
Sheet Size Width x Length
Max. 470 x 636 mm or 18.5” x 25.0”
Min. 148 x 210 mm or 5.8” x 8.3”
Sheet Weight Range 23 to 230 gsm
Bin Pile Height 90 mm or 3.5”
Production Speed 230 to 3,200 sets per hour (8 bins)
230 to 3,200 sets per hour (16 bins)
