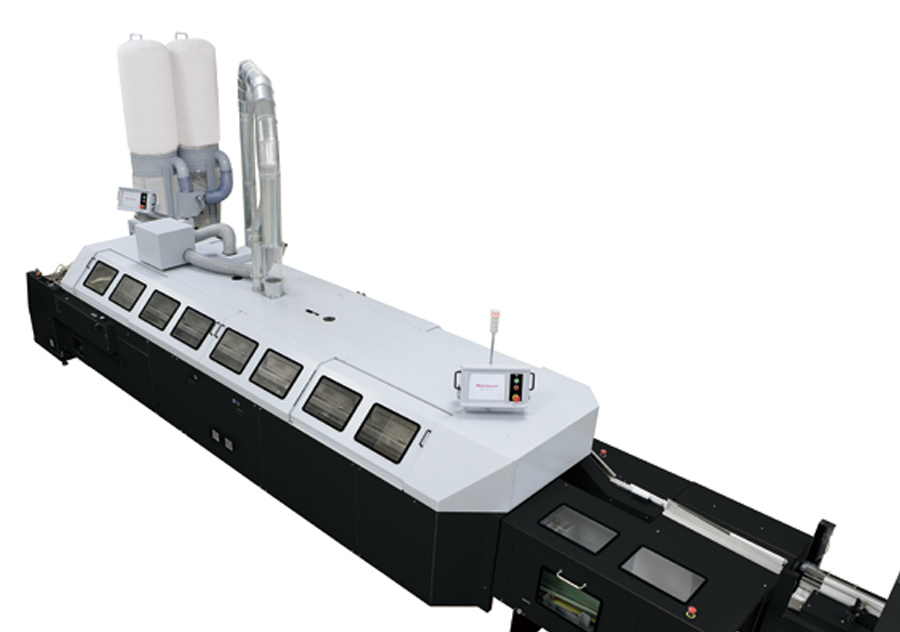

– High productivity at 6,000 books per hour with in-line system from gathering to trimming.
– Covers from short run to long run production challenges thanks to intuitive easy operation through the touch panel and fast, highly accurate change overs.

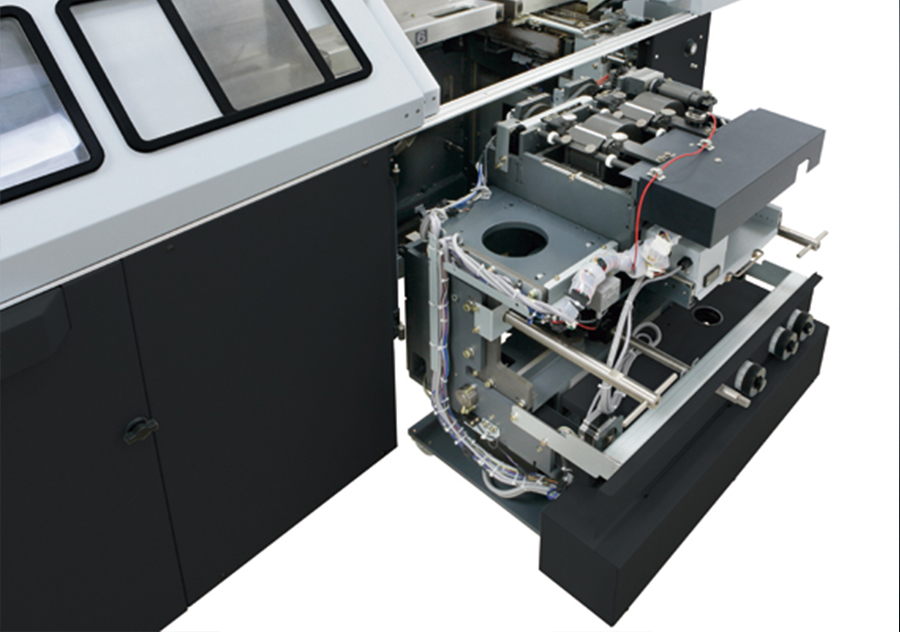

– Equipped with interchangeable tank unit that allows both EVA and PUR hot melt to be used.
– VVarious book sizes can be bound in-line, from minimum size A6 to maximum size B4.
– Off-line signature gathering is possible using the ST-600 stacker. Also, by installing the RU-600 misfeed unit the gatherer can operate non-stop.
– Quality control image checking cameras, thickness detector, weight checker, book block length detector, and other optional quality control features.
– The system can be enhanced with automated workflow from upstream to post-press with iCE LiNK, which uses cloud technology, Horizon's post-press management system.
| Model | SB-17 / SB-17F |
|---|---|
| Book Block Size | Spine Length x Fore-edge Length In-line Portrait Max. 385 x 275 mmor 15.157” x 10.826” Min. 148 x 105 mmor 5.827” x 4.134” (A6) Land Scape Max. 250 x 320 mmor 9.842” x 12.598” Min. 135 x 185 mm or 5.315” x 7.284” (B6) |
| Book Thickness | 2 to 50 mmor 0.08” to 2” |
| Production Speed | Max. 6,000 books per hour |
