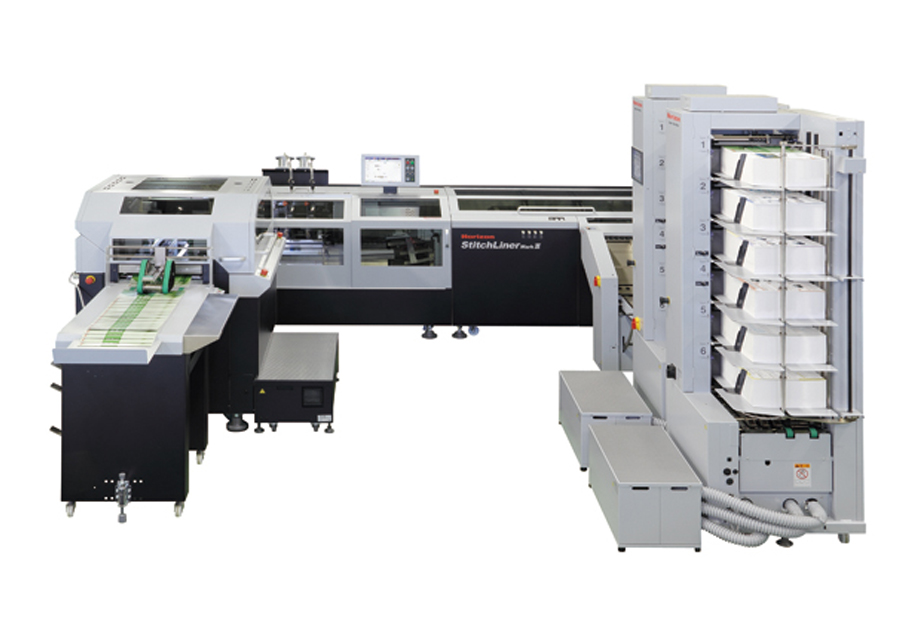

Saddle-Stitching System StitchLiner MarkIII

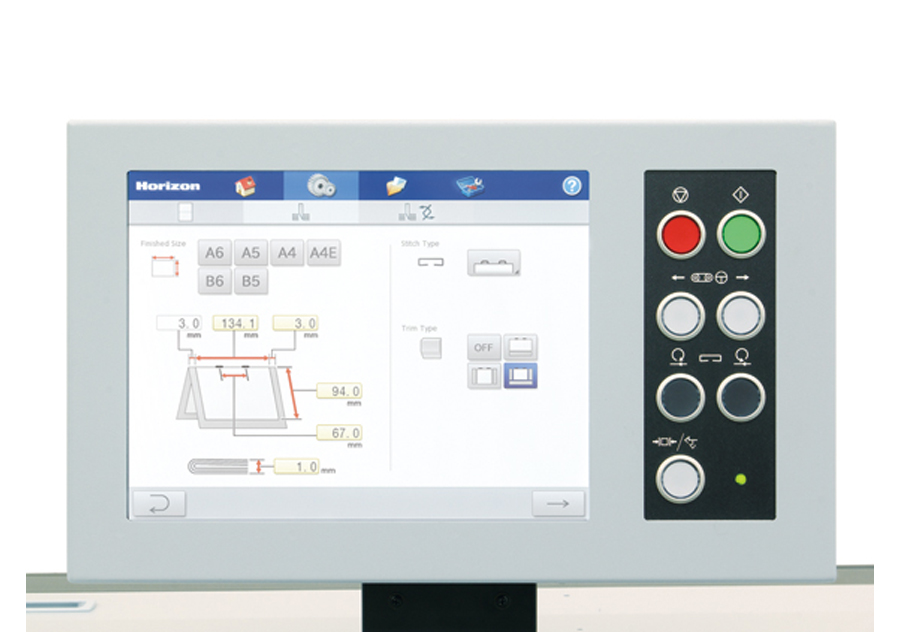

Horizon takes saddlestitching technology to the next level! The new StitchLiner MarkIII delivers the highest quality booklets with greater effi ciency than ever before!Fully-automated Settings – In addition to booklet format and thickness, all necessary adjustments which includes length and balance are automated.

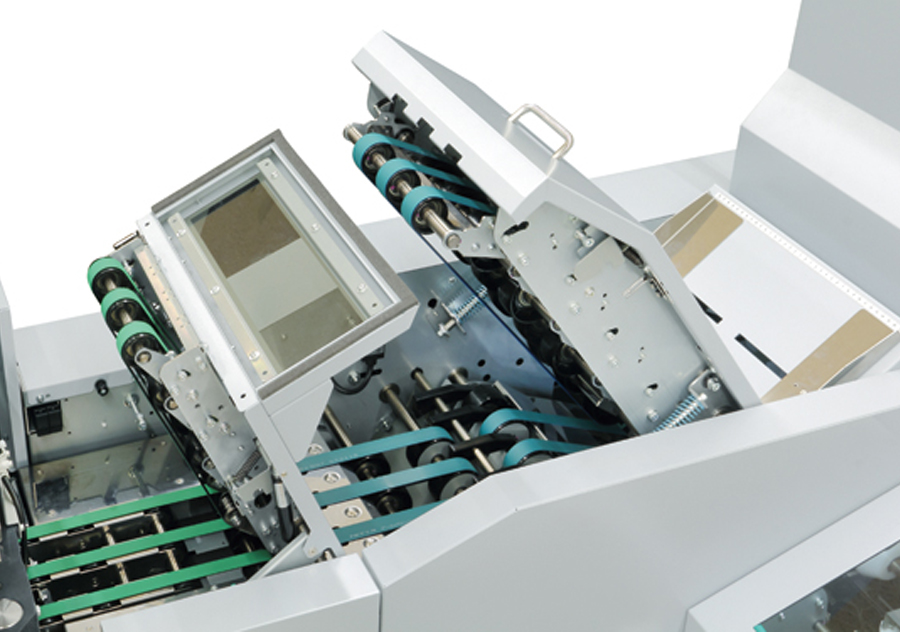

Higher Quality Booklet – Professional quality production is achieved with newly designed systems for sheet transport and jogging, scoring and folding, stitch and fold monitoring, and positive jog register at the trimmer.
Variable Thickness Production – True end to end automation for variable thickness production. Variable stitch length and balance adjustment combined with variable thickness transport adjustment through the trimmer.
A4 Landscape Stitching – Expanded format size to meet A4 landscape large format calendar production.
Higher productivity is achieved on a wider range of formats, including A4 landscape at over 5,000 per hour
Specifications
| Model | StitchLiner MarkIII |
|---|---|
| Finishing Type | Saddle Stitch, Fold and Trim |
| Sheet Size | Width x Length Portrait Max. : 356 x 508 mm or 14.015” x 20.000” Landscape Max. : 267 x 610 mm or 10.510” x 24.015” Min. 140 x 194 mm or 5.515” x 7.640” * Max 356 mmx 610 mm or 14.015” x 24.015” can de processed depending on substrate weight and condition. A3 / B4 / A4 / B5 / A5 11” x 17” / 8.75” x 11.25” / 8.5” x 11” / 9.75” x 10.25” / 5.5” x 8.5” |
| Sheet Weight Range |
Normal Paper : 52.3 to 350 gsm Coated Paper : 73.3 to 350 gsm |
| Stitch Thickness |
Max. : 5 mmor 0.195” (Booklet Thickness 10 mmor 0.390”) (About 50 sheets of Normal Paper 81.4 gsm) |
| Production Speed |
Max. 6,000 booklets per hour (A4 Portrait finished from A3 sheets) (The production speed is affected by operation mode and paper condition.) |
