Saddle-Stitching System StitchLiner6000
At up to 6,000 booklets per hour, the StitchLiner6000 is ideally suited for landscape-oriented booklets.User-friendly Operation – User-friendly operation through the color touch screen and accurate automation achieve short make-ready for quick turnaround.

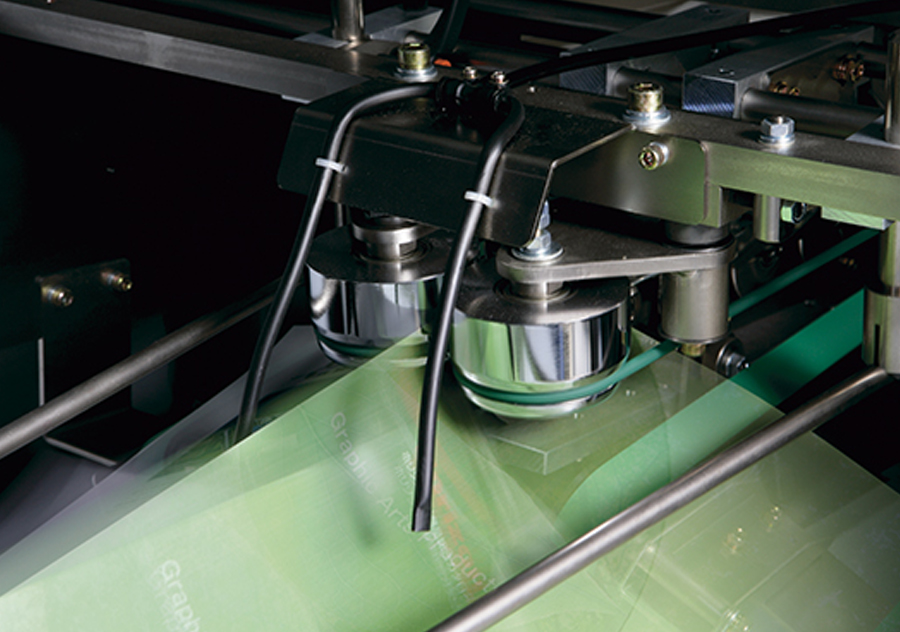

In-line Folding – Folding is performed in-line to simplify the saddle-stitching workflow and improve operational effi ciency.

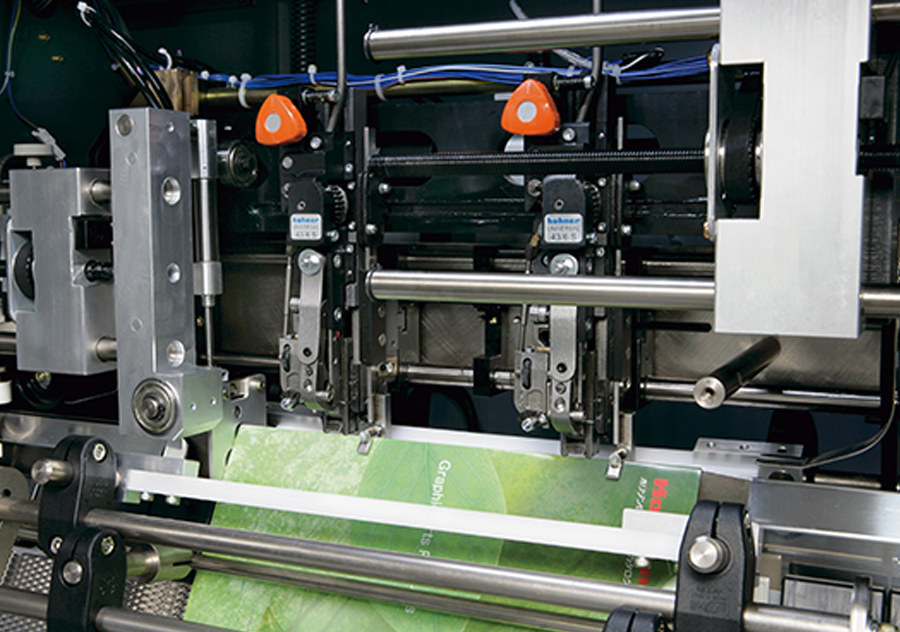

Meet the Variable Needs – Newly designed landscape feeding and straight saddle-stitching flow handles thinner paper stock and feeds larger, landscape-oriented sheets.

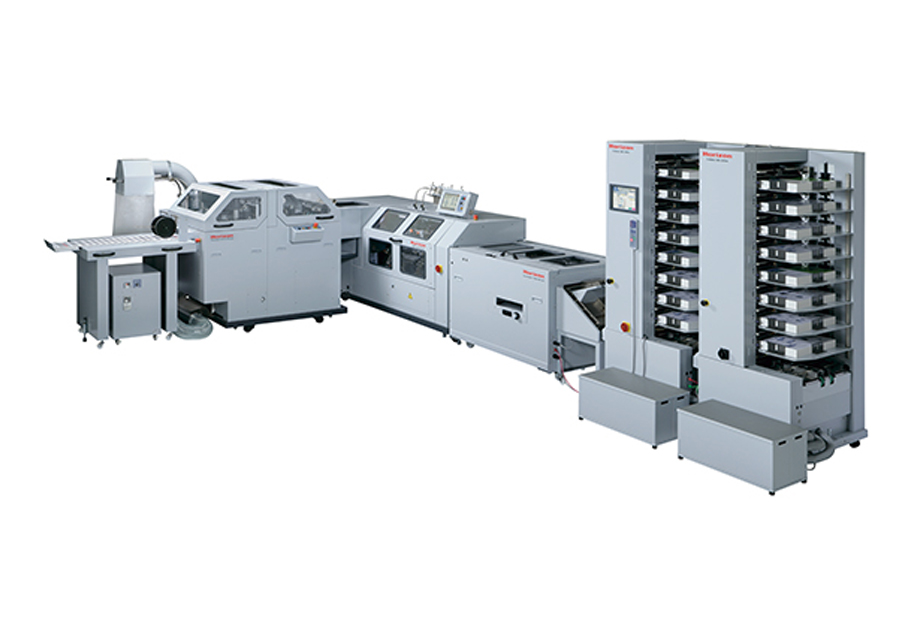

Efficient Work Space – Ergonomic L-shaped confi guration for effi cient operation and space savings.
Specifications
| Model | StitchLiner6000 |
|---|---|
| Sheet Size |
Width x Length Max. 500 x 350 mm or 19.68” x 13.77” Min. 199 x 140 mm or 7.84” x 5.52” |
| Sheet Weight Range |
Normal Paper : 53 to 210 gsm Coated Paper : 74 to 210 gsm |
| Stitch Thickness |
Max. 5 mm or 0.19” (Booklet Thickness 10 mm or 0.39”) (about 50 sheets of 80 gsm or 22# normal) Loop Stitch : Max. 3 mm or 0.11” (Booklet Thickness 6 mm or 0.23”) |
| Production Speed |
Max. 6,000 booklets per hour - Min. 2,900 booklets per hour
(Changed in 11 steps) *The production speed is affected by operation mode, system setting, job setting and paper condition. |
