Product Brochure

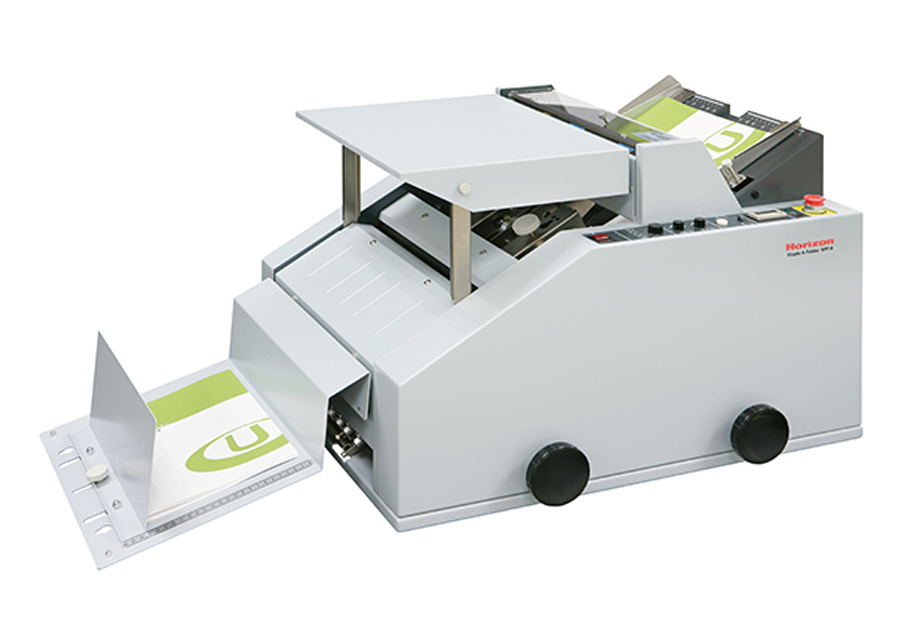

Bookletmaker SPF-8

The Compact Desktop Bookletmaker that saves money and time by increasing the efficiency of your book binding operation.

Multiple Functions – Bookletmaking, Side-stapling, Corner-stapling and Fold can be selected.

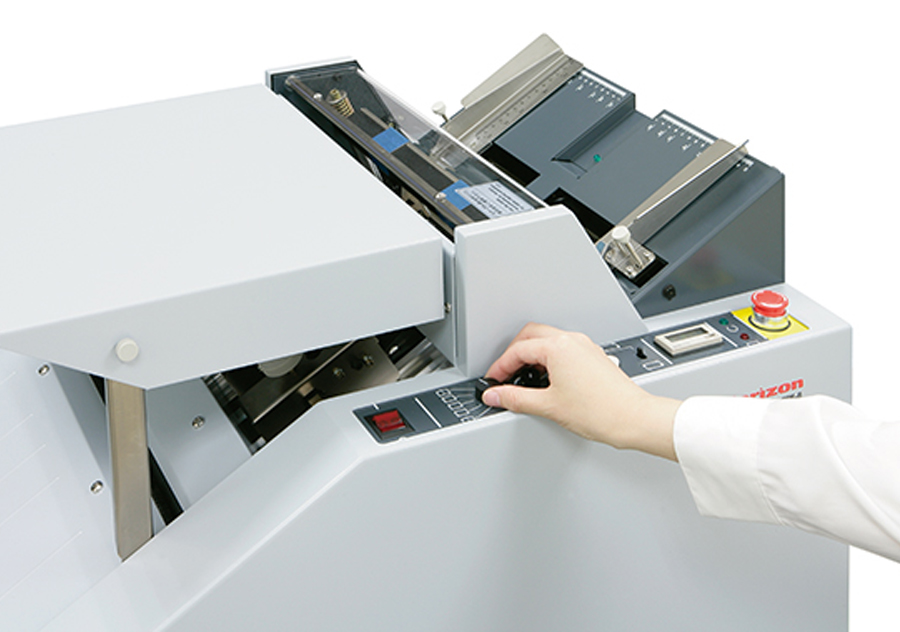

Easy to Operate – Even a non-skilled operator can staple and fold with fail-safe and simple operation.

Staple Monitor – When the staple becomes empty or jammed, operation stops immediately.

Flat and Neat Stapling Finish – The SPF-8 is equipped with the staple unit that produces completely flat stapling.

Perfect for Short-Run Operation – TThe SPF-8 is the perfect machine for short run job or sample preparation.

Specifications

Model SPF-8
Functions Bookletmaking, Side Stapling, Side Stapling and folding (A6 size only)
Sheet Size Width x Length
Max. 320 x 470 mm/ 12.6” x 18.5”
Min. 120 x 200 mm/ 4.7” x 7.9”
Bookletmaking : / A3 / B4 / A4 / B5 / A5
Top Stapling : A4 / B5 / A5
Sheet Weight Range Max : 2 mm/ 0.8"
Staple Distance 65 / 72.5 / 80 / 102.5 / 110 / 140 / 147.5 / 155 mm
(2.5” / 2.8” / 3.1” / 4.0” / 4.3” / 5.5” / 5.8” / 6.1”)
Production Speed 1,060 booklets per hour (B5 booklet, Bookletmaking)
1,500 booklets per hour (B5 booklet, folding)
1,380 booklets per hour (A5 booklet, Bookletmaking)
1,900 booklets per hour (A5 booklet, folding)
