Punch Staple Unit PS-P610

Optional Punch Staple Unit PS-P610 for a variety of document fi nishing

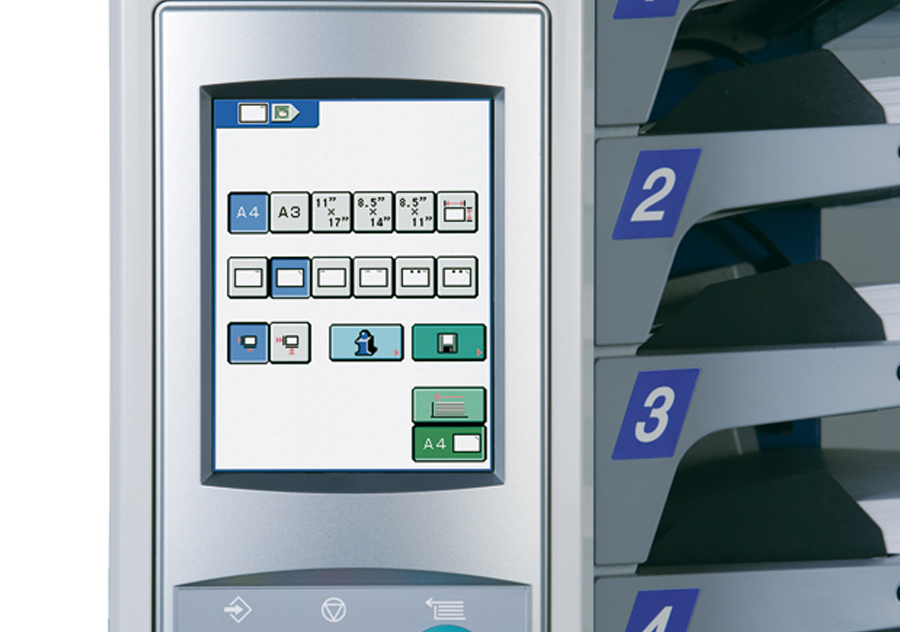

Ease of Operation – User-friendly, high performance interface is provided for more comfortable operation. All setups and operations for the PS-P610 can be per formed through the color touchscreen on the QC-S series.

Multiple-page Stapling – Multiple-page documents such as resumes or proposals can be stapled. Up to 24-sheets (normal paper 81 gsm) can be stapled.

Variable Staple Styles – Top/side stapling, corner stapling, and two hole punching (optional punch unit PU-610 is required) can be performed to effectively finish your documents.

Specifications

Model	PS-P610
Functions	Top Stapling, Angled Corner Stapling, Straight Corner Stapling, Other Side Corner Stapling, Two Hole Punching (option)
Sheet Size	Width x Length Max. 300 x 432 mm/ 11.8” x 17.0” Min. 182 x 257 mm/ 7.2” x 10.2”
Sheet Weight Range	Normal Paper 53 to 127 gsm (Up to 104 gsm on Punching)
Staple Thickness	Side or Corner Stapling : Max. 24 sheets (Normal Paper 81 gsm) Max. 12 sheets (Normal Paper 127 gsm) Optional Punch Capability : Up to 1.5 mm/ 0.059” (Max. 12 sheets [Normal Paper 104 gsm])
Production Speed	Side Stapling : Max. 12 sets per minute Corner Stapling : Max. 25 sets per minute
