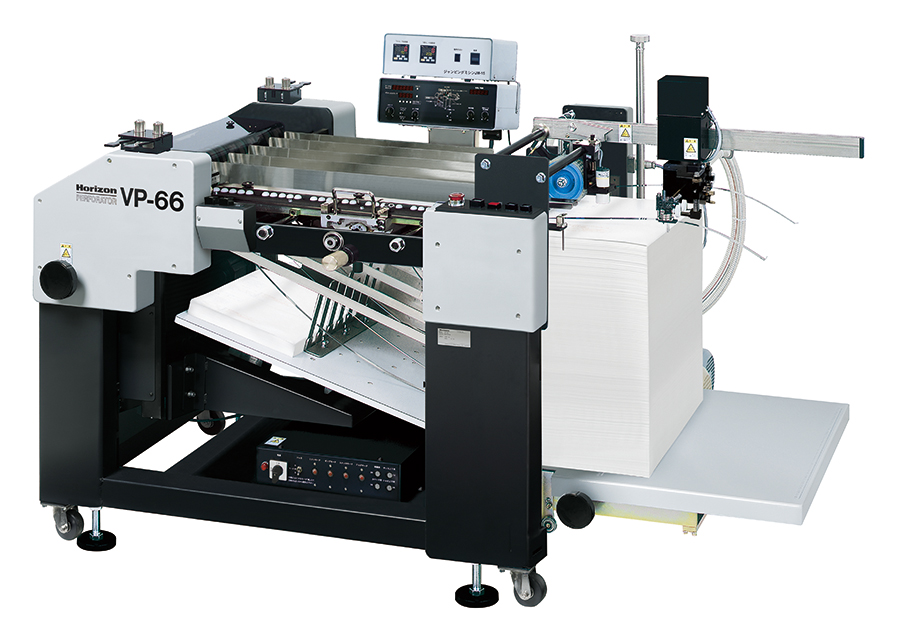

Perforating VP-66

High speed and high quality perforation featuring air suction feeder.

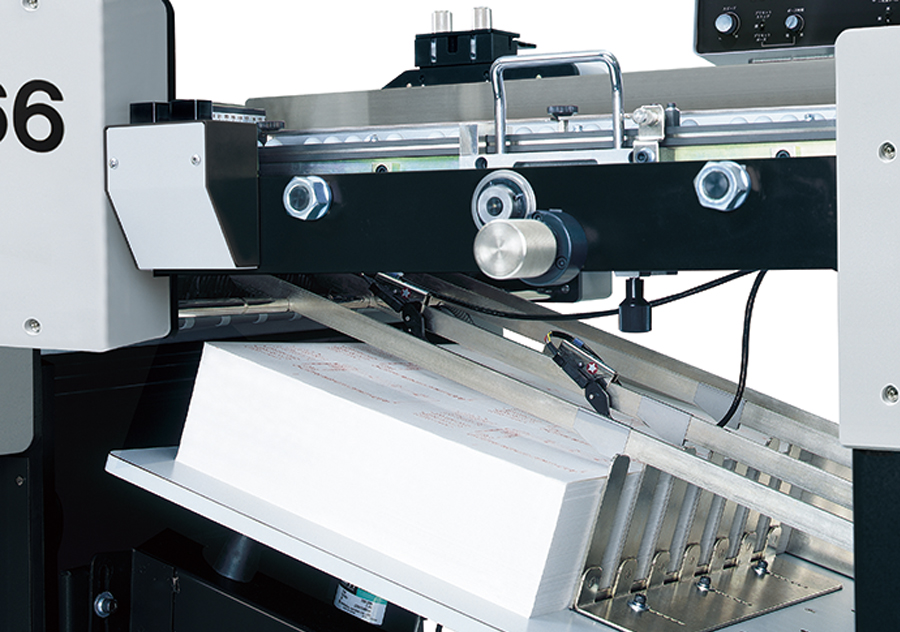

– Uniquely designed perforation unit can be easily set up to suitable position and allows multiple perforations at the same time. The perforated sheets are flipped over and delivered into a descending stacker. This allows you to perforate on numbered sheets with no added sheet handling.

–Air Suction Feeder for VP-66 can feed a wide variety of paper stocks ranging from 35 gsm tissue paper to 157 gsm. Top perforating speed for VP-66 is 15,500 sheets per hour .

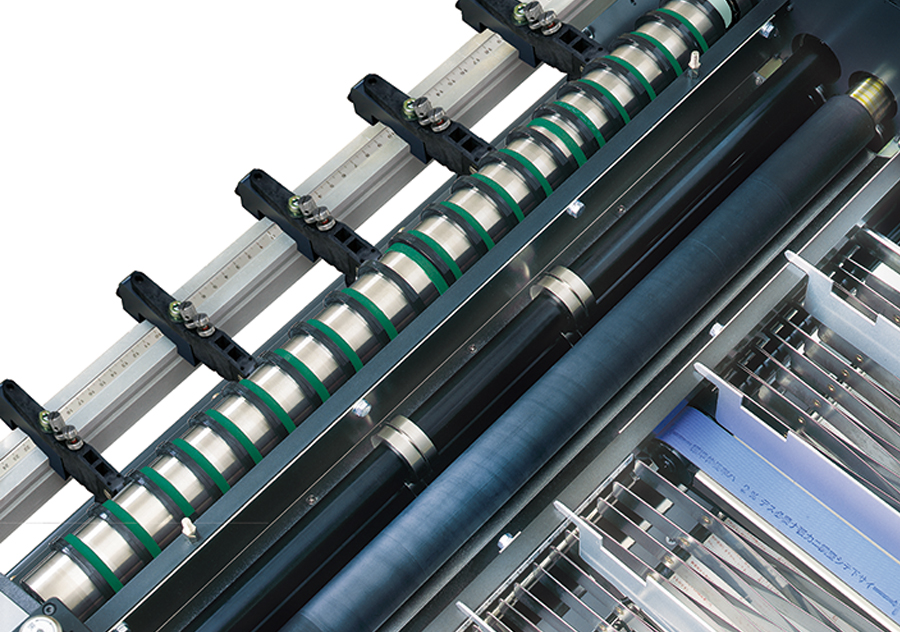

– The VP-66 is equipped with the case-hardened and polished drum. With its excellent durability, you can make a high quality perforation over a long duration.

– A variety of optional blades (Scoring, Slit, and Perforation) and Skip Perforation Unit are available for various applications.

Specifications

Model	VP-66
Sheet Size	Width x Length Max. 655 x 655 mm or 25.7" x 25.7" Min. 170 x 174 mm or 6.7” x 6.8”
Sheet Weight Range	35 gsm to 157 gsm
Production Speed	4,000 to 15,500 sheet per hour
Perforation	Cut : 2 mm or 0.08” Blank : 0.6 mm or 0.02” Minimum line distance : 9 mm or 0.36” Maximum 71 perforation lines can be processed.
