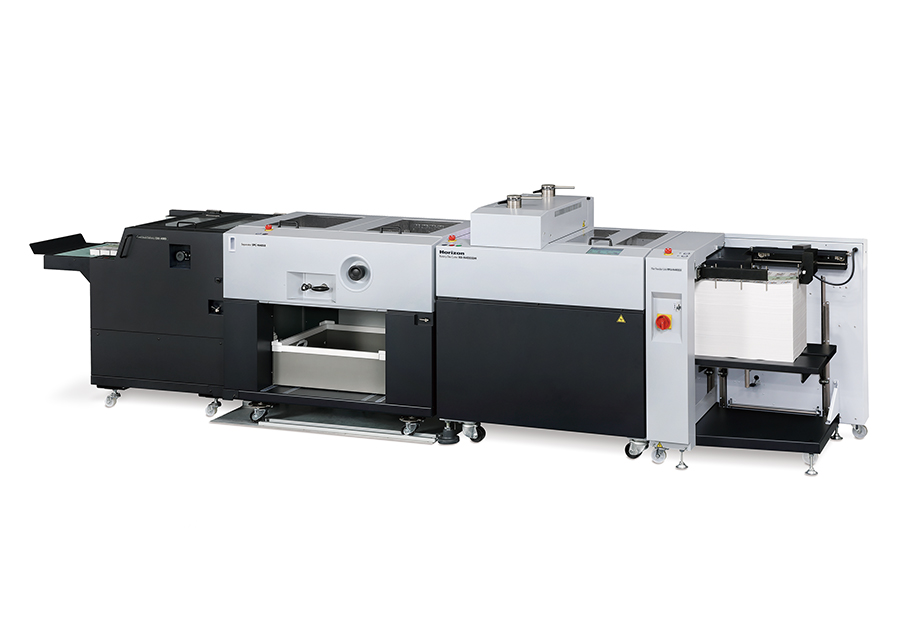

Rotary Die-cut System
RD-N4055 / RD-N4055DM

IMPROVE THE QUALITY AND PRODUCTIVITY OF DIE-CUTTING PROCESS.

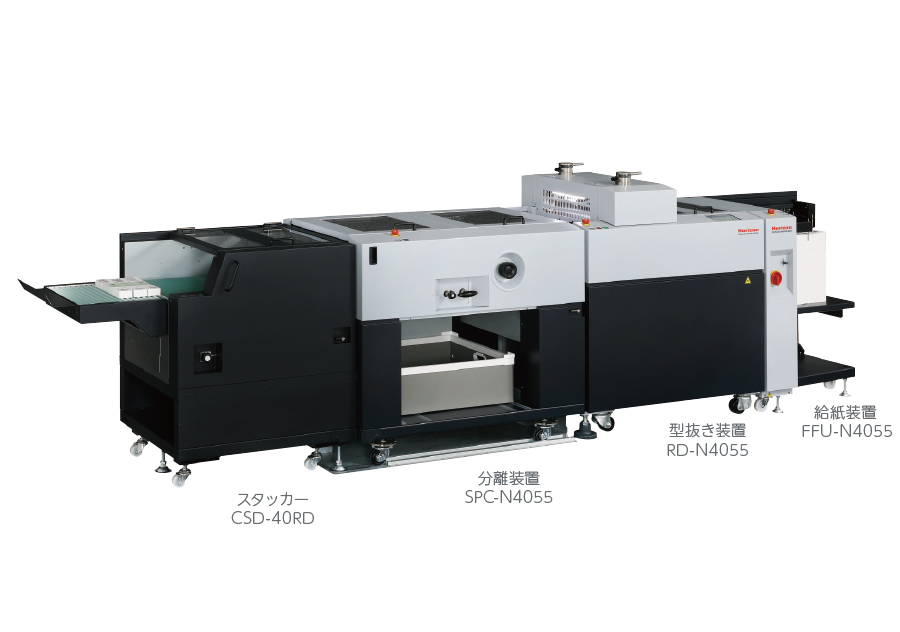

Efficient production with new separator and card stacker for labor saving operation.

HIGH EFFICIENCY　– Die cutting, waste separation and stacking in one pass for efficient production.

APPLICATION FLEXIBILITY– Business cards, greeting cards, labels and light packages... A Wide range of applications can be processed.

HIGH PRODUCTIVITY – Maximum 6,000 sheets can be processed. In case of 21 up round corner business card application, it can process 126,000 cards.

Model	RD-N4055 / RD-N4055DM
Sheet Feeding System	Air Suction Feed Belt
Sheet Size (Before processing)	Max. W400 x L550 mm or W15.740" x L21.650" Min. W200 x L275 mm or W7.875” x L10.830”
Processed Material	Normal paper, Coated paper, Cardboard The sheets below cannot be processed: Sheet whose back side is laminated (cover with polypropylene) Plastic fi lm
Material Thickness	RD-N4055: 127.9 to 400 gsm Die Cutting: Max. 0.5 mm or 0.019” (In case of blade height: 0.8 mm or 0.031”) Max. 0.3 mm or 0.011” (In case of blade height: 0.6 mm or 0.023”) Creasing: Max. 0.4 mm or 0.015” (In case of blade height: 0.8 mm or 0.031”) RD-N4055DM: 127.9 to 400 gsm Die Cutting: Max. 0.5 mm or 0.019” Creasing: Max. 0.3 mm or 0.011”
Feeder Stack Height	Maximum Feeder Stack Height: 500 mm or 19.68” Max Load: 100 kg or 220.5 lb
Die Size Upper Die	Max. W400 x L560 mm or W15.748” x L22.047” Min. W160 x L100 mm or W6.30” x L3.937”
Upper Cutting Blade Height	RD-N4055: 0.6 or 0.8 mm / 0.0236 or 0.0315” RD-N4055DM: 0.8 mm / 0.0315”
Production Speed	Die cut roller 6,000 cycles per hour (When the ST-N4055 is connected, the number of processing sheet is 3,000 sheets per hour.)
