Product Brochure

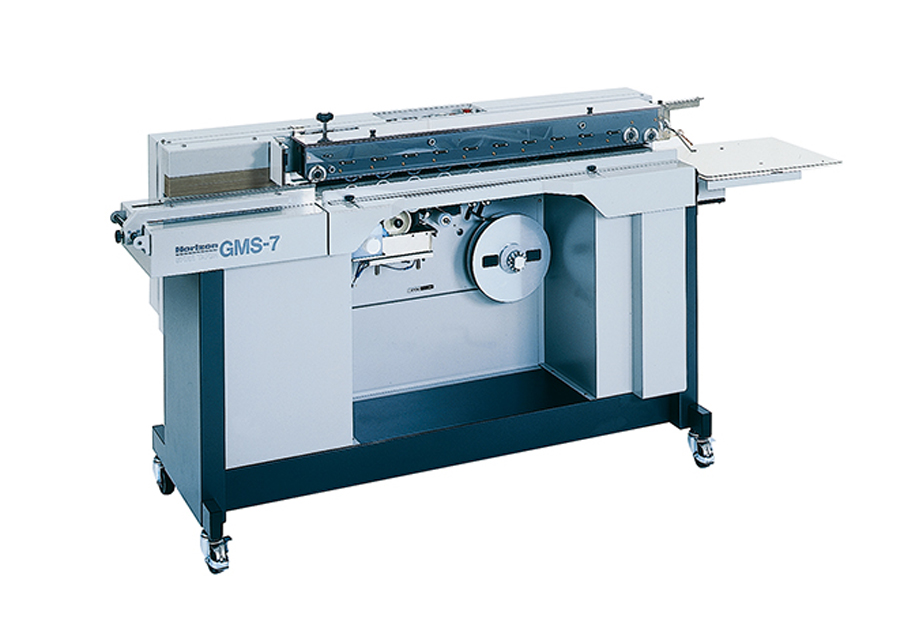

Spine Taper GMS-7

The Horizon GMS-7 Spine Taper is a fully automatic spine taper designed to handle any bound document from 80 mm/ 3.1” (spine length) and up in manual mode --- 180 to 320 mm/ 7.1” to 12.5” in automatic feed mode.

– Consistent tape feeding and precise tape cutting ensures high quality taping on the spine of the book.
– The production speed is up to 4,000 per hour for a book with a spine length of 180 mm/ 7.1”. (2,300 books per hour with A4 long edge / 11” length book)

Specifications

Model	GMS-7
Book Size	Spine Length: Manual Feeding More than 80 mmor 3.1” Automatic Feeding 180 to 320 mmor 7.1” to 12.5” Width: Manual Feeding More than 60 mmor 2.4” Automatic Feeding 128 to 273 mmor 5” to 10.7”
Book Thickness	Manual Feeding 2 to 30 mmor 0.1” to 1.2” Automatic Feeding 5 to 15 mmor 0.2” to 0.6”

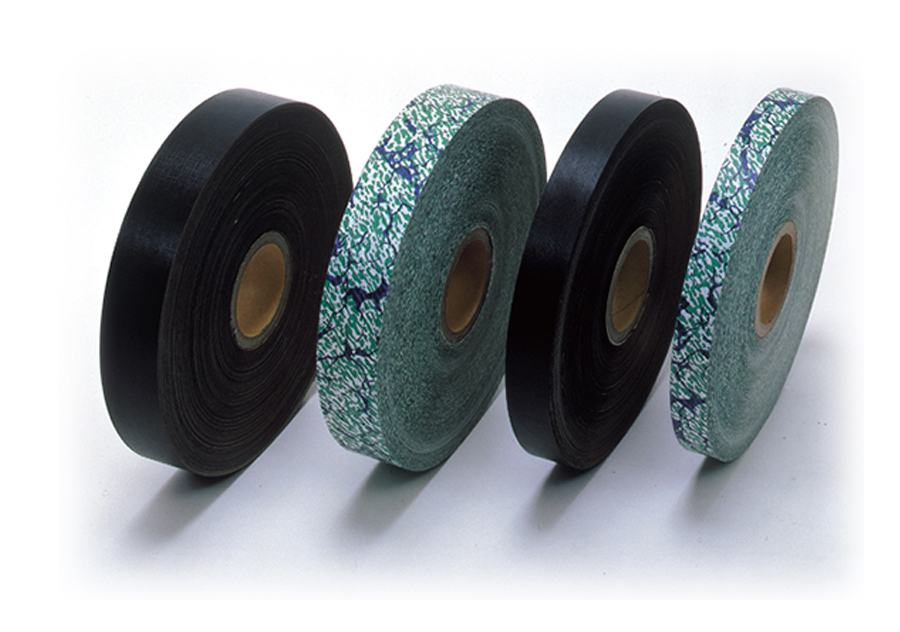

Tape Type	Water Moistened Tape
Tape Width	20 to 50 mmor 0.78” to 1.97”
Taping Speed	2,300 stocks per hour (A4 Portrait) 4.000 books per hour (180 mmor 7.1” Portrait)
