CRS-36

Creaser

Product Brochure

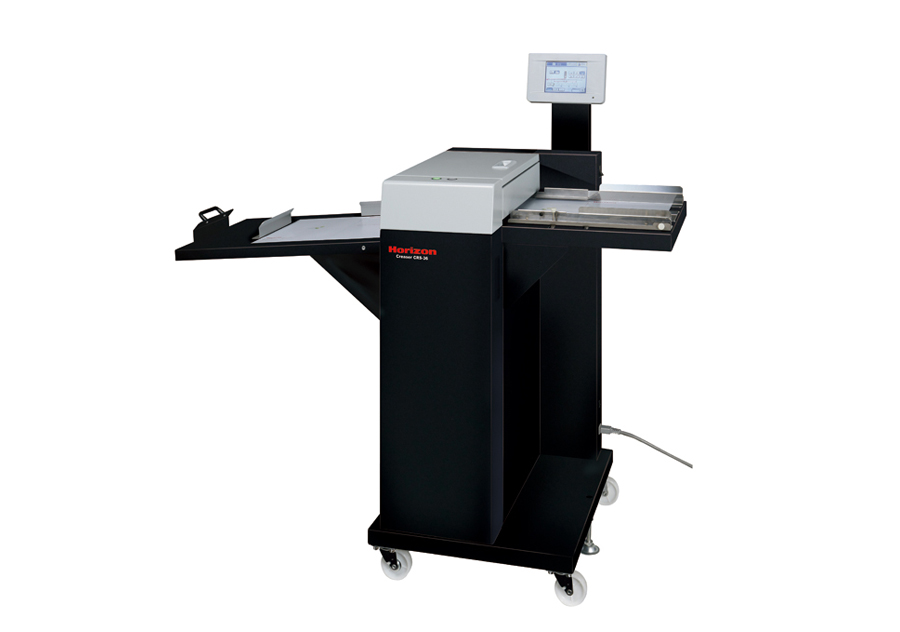

Creaser CRS-36

Avoid cracking on digitally-printed, heavy-weight stock with accurate, easy-to-use impact creaser

– Quick and easy set-ups are performed at the color touch screen control console.

– Select from a wide variety of scoring patterns.

– Ideal for book jackets, restaurant menus, greeting cards and all digital print applications.

– Crease even heavy stocks for high quality perfect binding with sharp corners.

Specifications

Model CRS-36
Sheet Feeding System Manual Feed
Sheet Size Width x Length
Max. 364 x 650 mmor 14.33” x 25.59”
Min. 140 x 180 mmor 5.52” x 7.09”
12 x 18”, A3, 11” x 17”, JIS B4, 8.5 x 14”, A4, 8.5” x 11”, JIS B5, and A5
Sheet Weight Range Normal Paper, Coated Paper
81.4 to 407 gsm, 24 lb bond to 150 lb cover
Impact Creasing Mechanism One set of positive and negative
Number of Impact Crease Lines Max. Eight Creasing Lines
Production Speed Length 430 mmor 16.92”,Four Creasing Lines, 4 seconds per sheet
