PF-P330

Paper Folder

Product Brochure

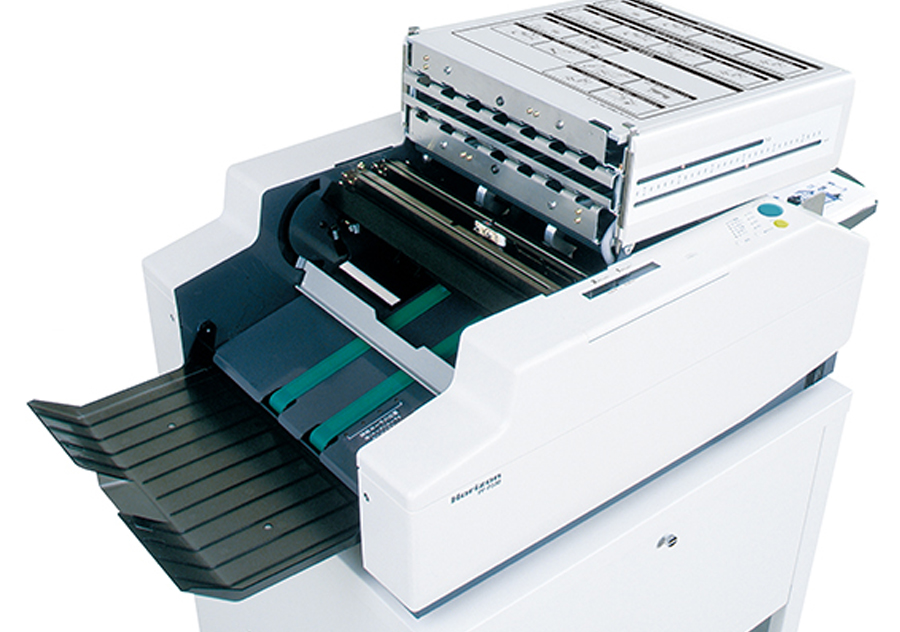

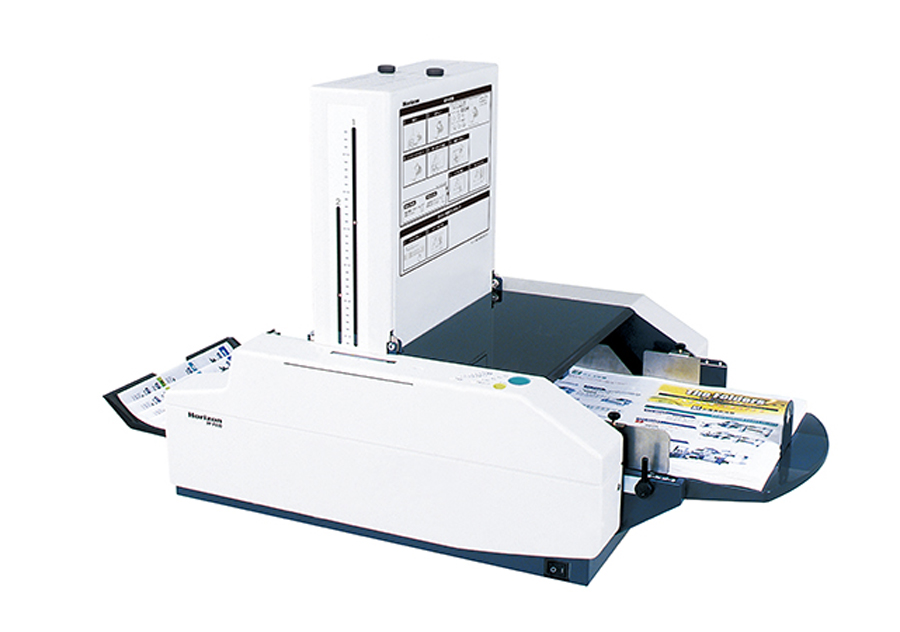

Paper Folder PF-P330

The PF-P330 paper folder is accurate, easy to operate, and uses rotary suction feeding for perfect folding of color-printed sheets.

Automatic set-up with simple operation – Simply select the sheet size and fold pattern and each section sets-up automatically.

High-speed folding – The PF-P330 will fold 240 sheets per minute (A4 single fold with 60 Hz; 200 sheets per min. with 50 Hz).

High capacity sheet pile table – 550 sheets of 64 gsm paper can be loaded on the table at a time, for efficient folding production.

Fold A3 / 11" x 17" and special size sheets – The PF-P330 can fold from B5 / 5.5" x 8.5" to A3 / 11"x17" size, and special-size sheets.

Helpful for Folding of drawings – Drawings can be placed face down on the feed table, and the folded drawings will be delivered in numerical order.

Extension Panel and Memory Functions – Additional special sheet sizes and fold patterns can be set-up through the extension panel, where up to 10 job settings can also be memorized

Specifications

Model PF-P330
Sheet Feeding System Air rotor system
Sheet Size (Width x Length) Max. 310 x 432 mmor 12.2” x 17”
Min. 125 x 130 mmor 4.93” x 5.12”
A3, B4, A4, B5, 11” x 17”, 8.5” x 11”, 8.5” x 14”, 5.5” x 8.5”
Sheet Weight Range Normal Paper, Glossy Paper, Coated Paper : 52 to 157 gsm
*Sheets which are heavier than 128 gsm cannot be parallel folded
Feeder Stack Height Max. 50 mmor 1.96”
Fold Patterns Single Fold, Double Parallel Fold, Short Fold, Accordion Fold, Letter Fold, Open Gate Fold
Production Speed 50 Hz : 200 sheets per minute (A4 single fold)
60 Hz : 240 sheets per minute (A4 single fold)
