PF-P3200

Paper Folder

Product Brochure

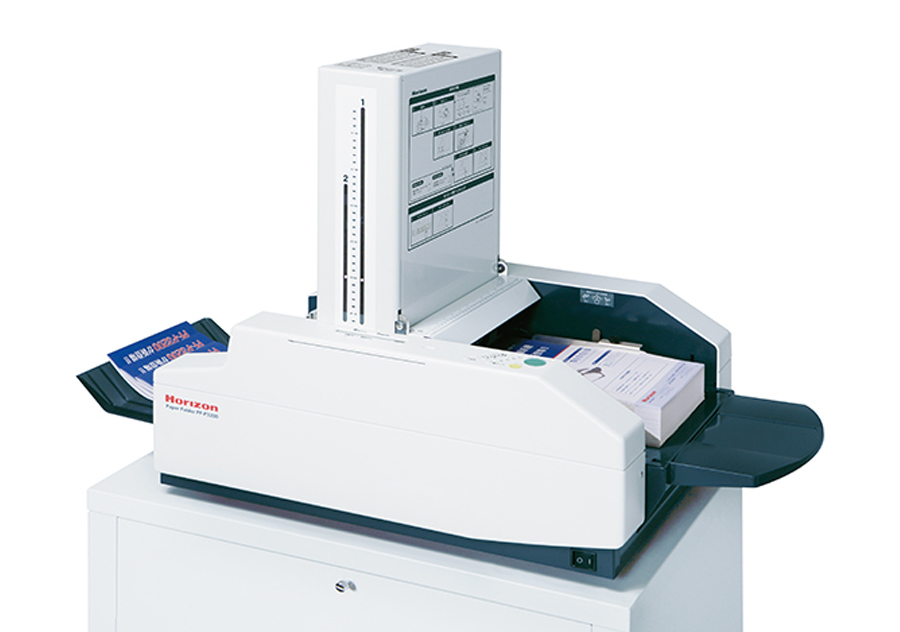

Paper Folder PF-P3200

High capacity and high productivity... Folding Speeds up to 240 sheets per minute (A4 single fold)
Advanced technology with lots of features for efficient operation

Automatic Setup with Simple Operation – Does not require advanced operator skills for setup. Each section is automatically set by selecting sheet size and fold pattern using the operation panel. Six standard fold patterns are available at the press of a button.

High-speed Folding - 240 sheets per minute – Even high volume direct mail jobs or urgent jobs can be handled with high productivity at maximum production speeds of 240 sheets per minute (A4 / 8.5” x 11” single fold)

Short Make-ready – Setup time is reduced dramatically and accuracy of the setup is improved with an accurate stepper motor.

High Capacity Feeding – The PF-P3200 is equipped with a high capacity feed table (550 sheets of 64 gsm can be loaded) to minimize sheet loading. The bin up / down motor enables fine bin control fo

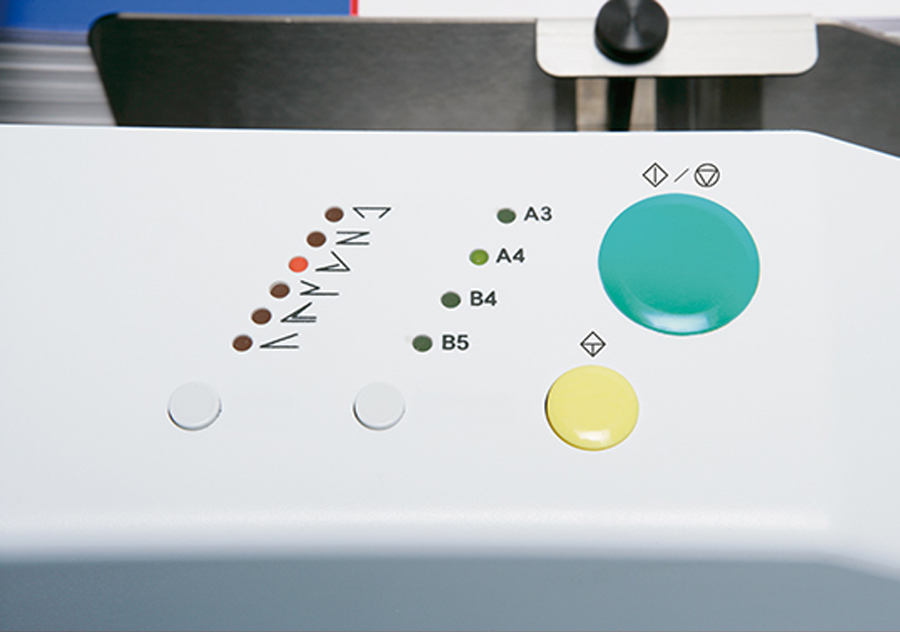

Simple Operation Panel – Equipped with a user friendly operation panel that makes understanding operating procedures very simple.

Specifications

Model PF-P3200
Sheet Feeding System Friction system
Sheet Size (Width x Length) Max. 311 x 432 mmor 12.24” x 17”
Min. 65 x 90 mmor 2.56” x 3.55”
A3, B4, A4, B5, 8.5” x 11”, 11” x 17”, 5.5” x 8.5”, 8.5” x 14”
Sheet Weight Range Normal Paper : 52 to 157 gsm
*Sheets which are heavier than 135 gsm cannot be parallel folded.
Feeder Stack Height Max. 55 mmor 2.16”
Fold Patterns Single Fold, Double Parallel Fold, Short Fold, Accordion Fold, Letter Fold, Open Gate Fold
Production Speed 200 sheets per minute (B4 single fold)
240 sheets per minute (A4 single fold)
