PF-P280

Paper Folder

Product Brochure

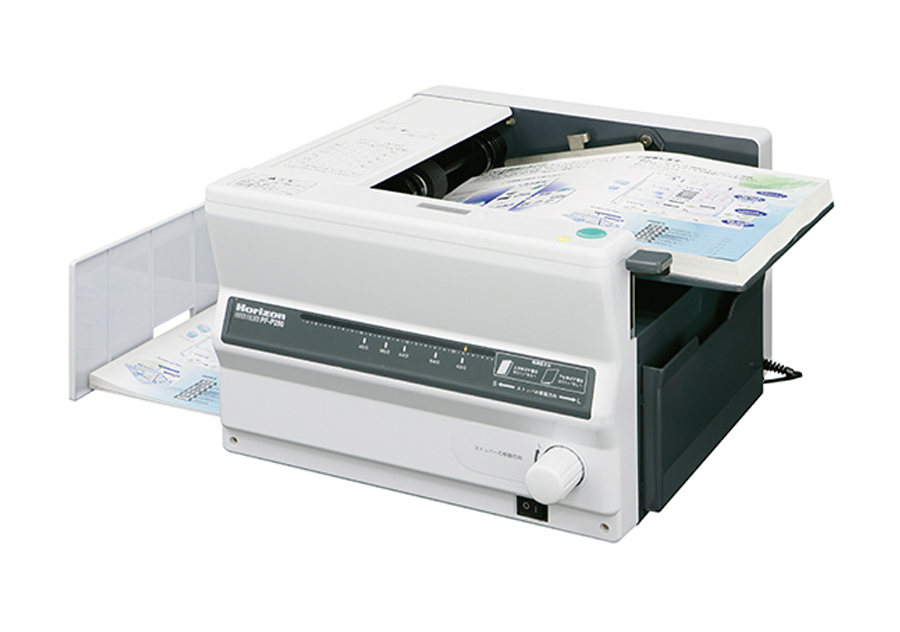

Paper Folder PF-P280

The PF-P280 can fold up to 140 sheets per minute. (A4 4-page Fold.)

Features of PF-P280 with One Buckle – Wider Folding Variations with Two-Step Folding The PF-P280 has been originally designed to perform a simple 4-page folding; however, two-step folding (cross folding via second pass) enables you to produce 6-page, letter, gete, 8-page cross fold.

Simple Maintenance – PF-P280 feature simple maintenance and minimum service effort. For instance, you can easily change the feed roller and double sheet feed stop pad. Moreover, even the folding rollers can also be easily replaced without using any special tools.

Specifications

Model PF-P280
Sheet Feeding System Friction system
Sheet Size (Width x Length) Max. 302 x 432 mmor 11.8” x 17.0”
Min. 65 x 90 mmor 2.6” x 3.6”
A3, B4, A4, B5, 11” x 17”, 8.5” x 14”, 8.5” x 11”, 5.5” x 8.5”
Sheet Weight Range Normal Paper: 47 to 105 gsm
* Up to 128 gsm sheets of the size from A4 to B5 can be single folded.
Feeder Stack Height Max. 21 mmor 0.82”
Fold Patterns Single Fold
Production Speed 50 Hz: 140 sheets per minute (A4 single fold)
60 Hz: 168 sheets per minute (A4 single fold)
