PF-40L

Paper Folder

Product Brochure

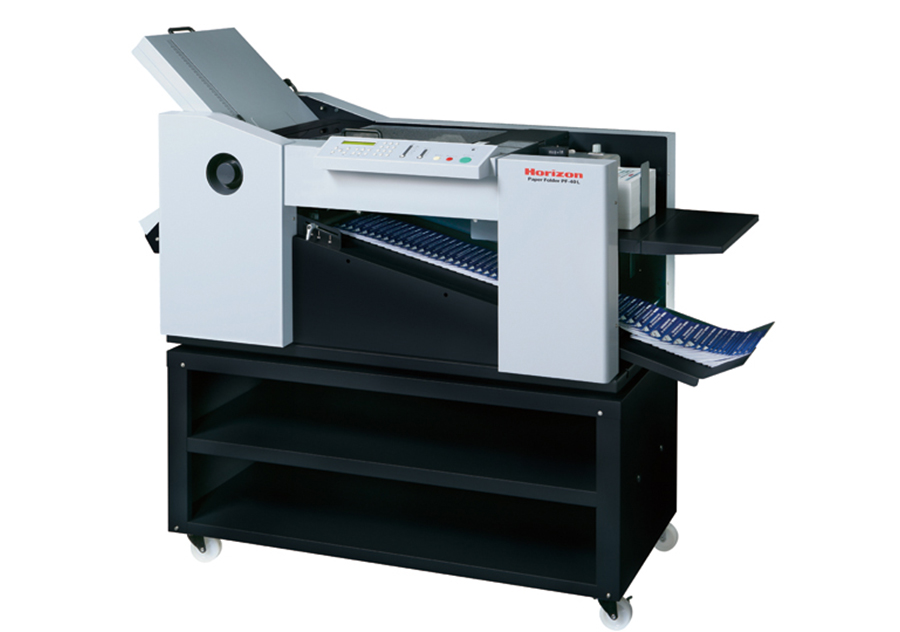

Paper Folder PF-40L

High Quality in a Compact Body!
High performance suction rotor feeding and accurate sheet registration leads to high quality folding. A4 (8.5” x 11”) fi nish letter fold*can be folded in the compact body.
* Only letter fold is available when using the sheet which length is 630 mm/ 24.80”.

Quick and Easy Setup – Simply select sheet size and fold pattern and each section sets-up automatically. The folder is equipped with 2 buckles to meet a variety of folds. Fine-tune adjustment can be done at 0.1 mmfor accurate folding.

High Performance Suction Rotor Feeding – Uniquely designed suction rotor feeding is employed to meet high speed production up to 390 sheets per minute, wide range of paper stock can be fed with ease.

High Capacity Feeder – High capacity feed table (1,300 sheets of 64 gsm can be loaded) to minimize sheet loading during longer production runs.

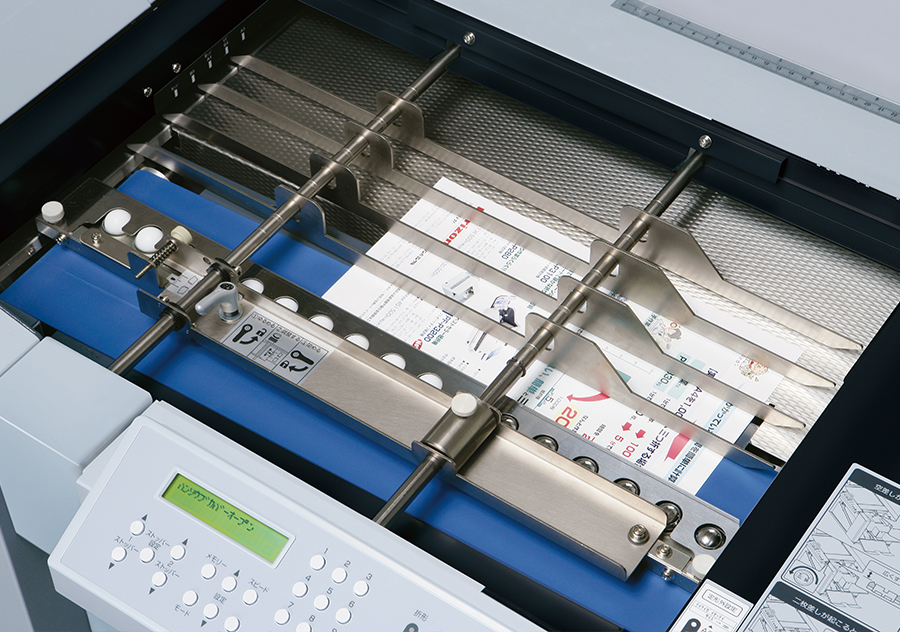

Accurate Sheet Registration – Registration guide ensures accurate sheet transportation and a high quality fold.

Specifications

Model PF-40L
Sheet Feeding System Air rotor system
Sheet Size (Width x Length) Max. 320 x 630 mm/ 12.59” x 24.80”
- The fold pattern is limited depending on the sheet length and the stopper adjustable range. For a sheet 430 mmor longer, only sheets of up to 105 gsm can be folded.
Min. 125 x 128 mm/ 4.93” x 5.04”
A3 / B4 / A4 / B5 / 11” x 17” / 8.5” x 14” / 8.5” x 11” / 5.5” x 8.5”
Sheet Weight Range Normal Paper: 52 to 157 gsm
Coated Paper: 73 to 157 gsm
Feeder Stack Height Max. 105 mm/ 4.13”
Fold Patterns Single Fold, Double Parallel Fold, Short Fold, Accordion-Fold, Letter Fold, Open Gate Fold
Production Speed 270 sheets per minutes (A3 single fold)
390 sheets per minutes (A4 single fold)
