EF-354 / EF-354SR

Paper Folder

Product Brochure

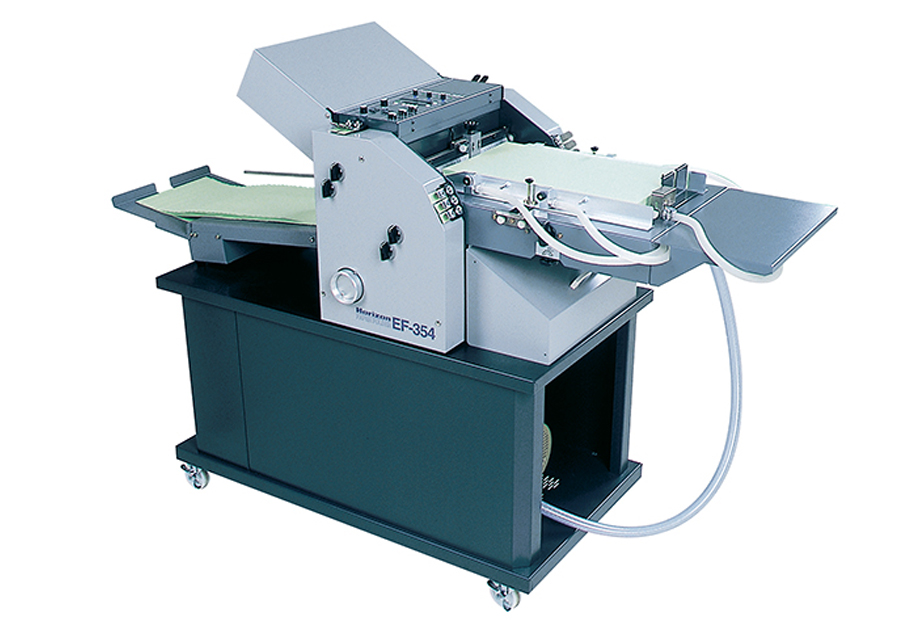

Paper Folder EF-354 / EF-354SR

The EF-354 4-buckle folder is suitable for direct-mail or leaflet folding.

– 4-buckle plates enable you to perform complex folding for direct-mail or unique leafl et.

– Minimum fold length is 20 mm/ 0.8".

– The EF-354 features a top-load bottom suction-feed system, allowing you to load sheets while folding for non-stop operation.

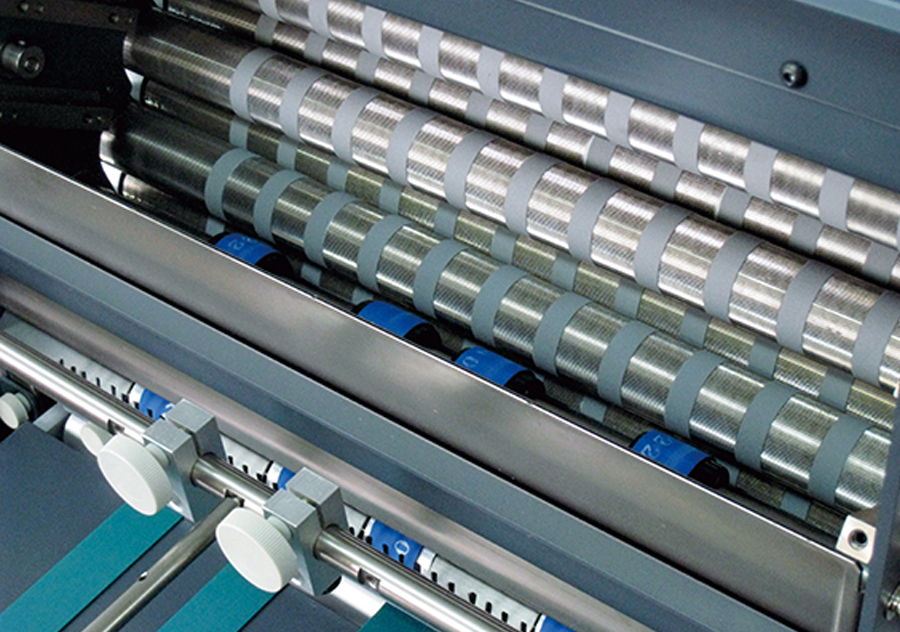

– The roller gap shafts employ a simple sheet inserting adjustment system.

– The preset counter for batch counting is provided as standard function.

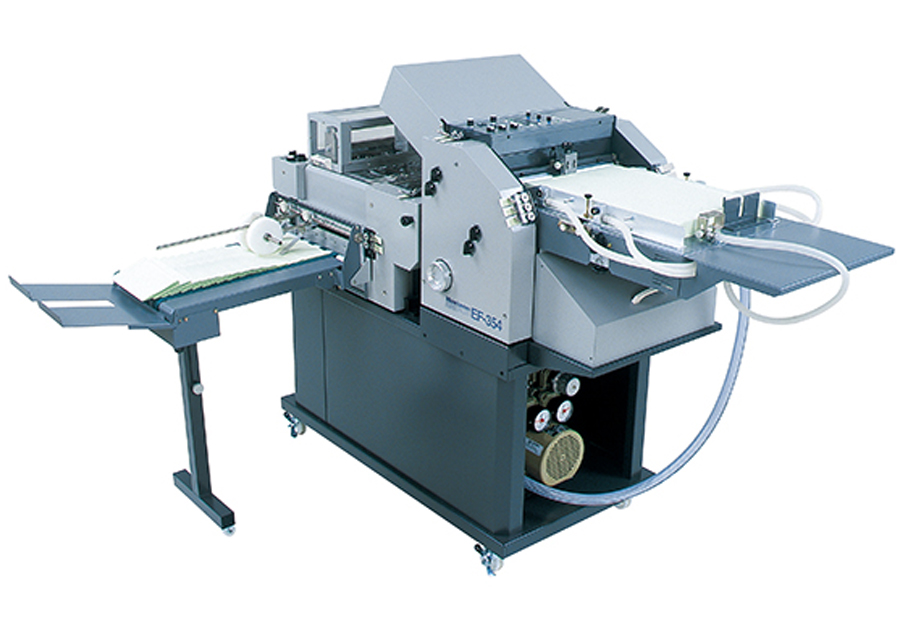

– Optional standing delivery is prepared for small size stack.

Specifications

Model EF-354 / EF-354SR
Sheet Feeding System Air suction, air rotor
(Feed interval and vacuum time can be adjusted)
Sheet Size (Width x Length) Max. 350 x 650 mm/ 13.7” x 25.6”
Min. 55 x 70 mm/ 2.2” x 2.8”
Sheet Weight Range 47 to 240 gsm
Pile Height Max. Normal Paper : 40 mm/ 1.6”
Coated Paper : 20 mm/ 0.8”
