AFV-56 series
TV-56 series

Folder

Product Brochure

Folder

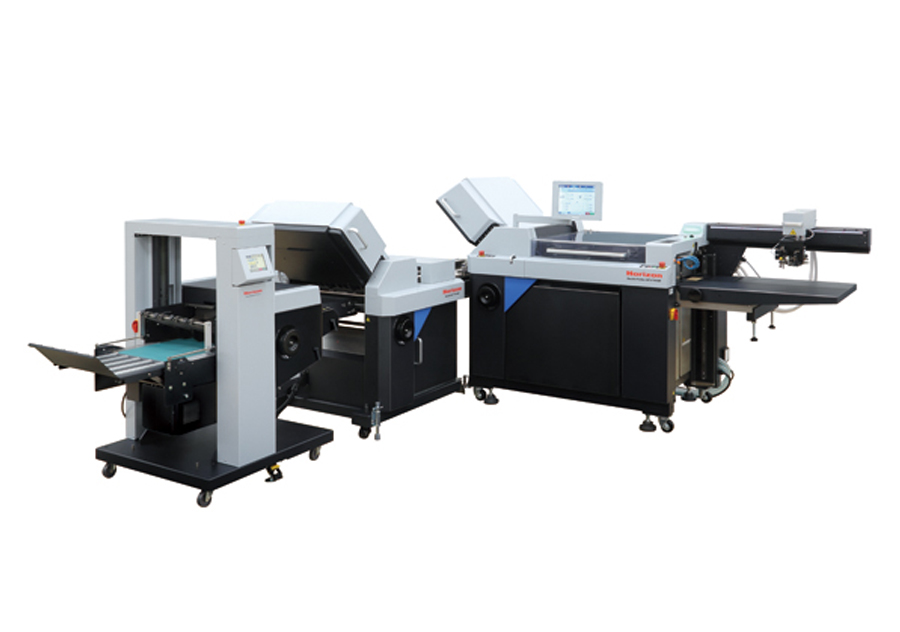

AFV-56 series / TV-56 series

Increased productivity with the highest level of automation!

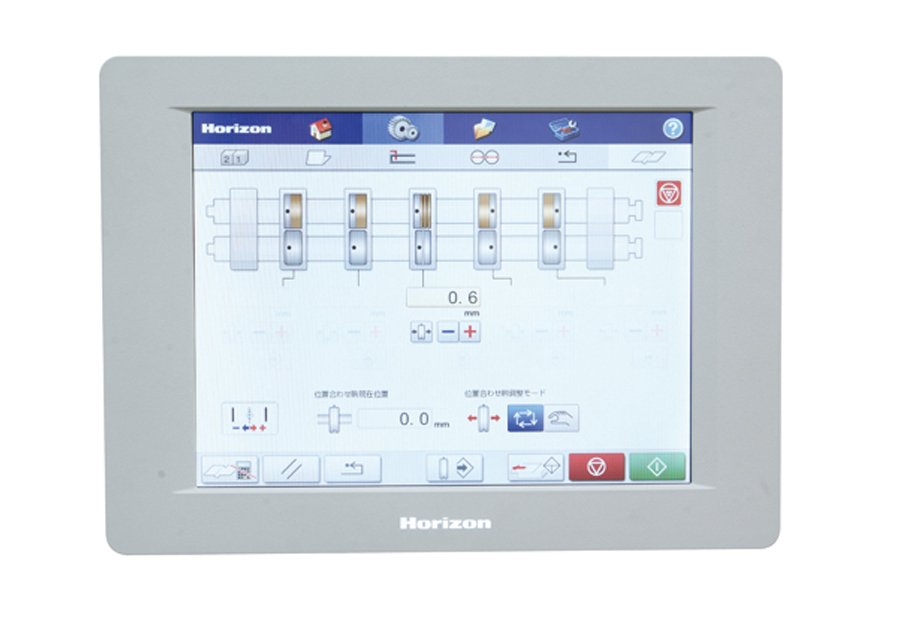

Automatic Setup – Icon based touchscreen enables intuitive setup and operation.

Advanced automation – Increased automation and faster automated settings reduces setup time for accurate folding quality with quicker turn around.

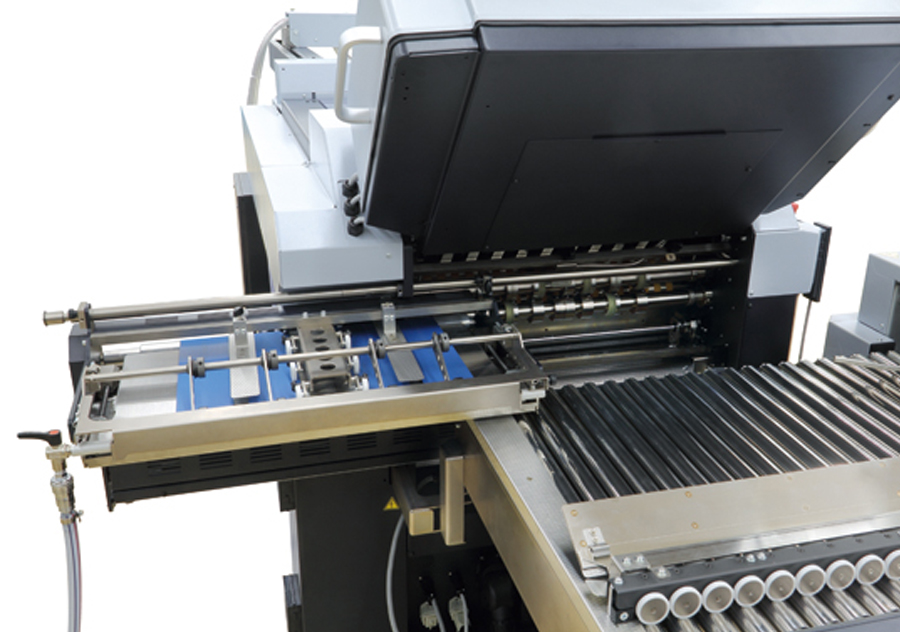

High Quality and Productivity – Uniquely designed buckle plate and folding mechanisms ensures consistent accuracy of folding quality and durability.

Flexible – Selection of buckle plate and fold roller composition are available to meet a wider variety of folding needs.

MANAGE YOUR BINDERY WITH PXNET – The optional pXnet bindery control system makes job scheduling and tracking for the HT-30C super efficient, or accept JDF setup data from an upstream workflow.

Specifications

Model AFV-56
Machine Structure First Station: AFV-566DF (6 buckle plates / Full Auto / Dynamic Fold)
Second Station: TV-564F (4 buckle plates / Full Auto)
Sheet Size (Width x Length) Max. 560 mmx 900 mm/ 22.05” x 35.43”
Min. 105* mmx 148 mm/ 4.13” x 5.83” (*Optional guide is required)
Belt Speed 30 to 270 m per minute
