Product Brochure

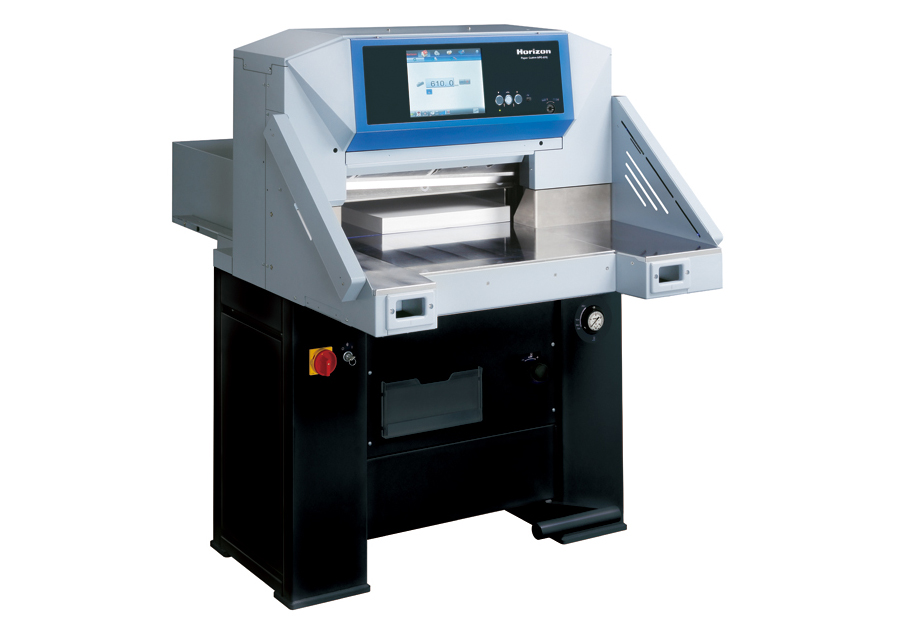

Hydraulic Paper Cutter APC-610

Compact hydraulic cutting system with accurate cutting quality and simple operation.

Powerful and Accurate – Hydraulic clamping and cutting mechanism ensures accurate cutting quality. Servo motor driven backgauge for accurate positioning.

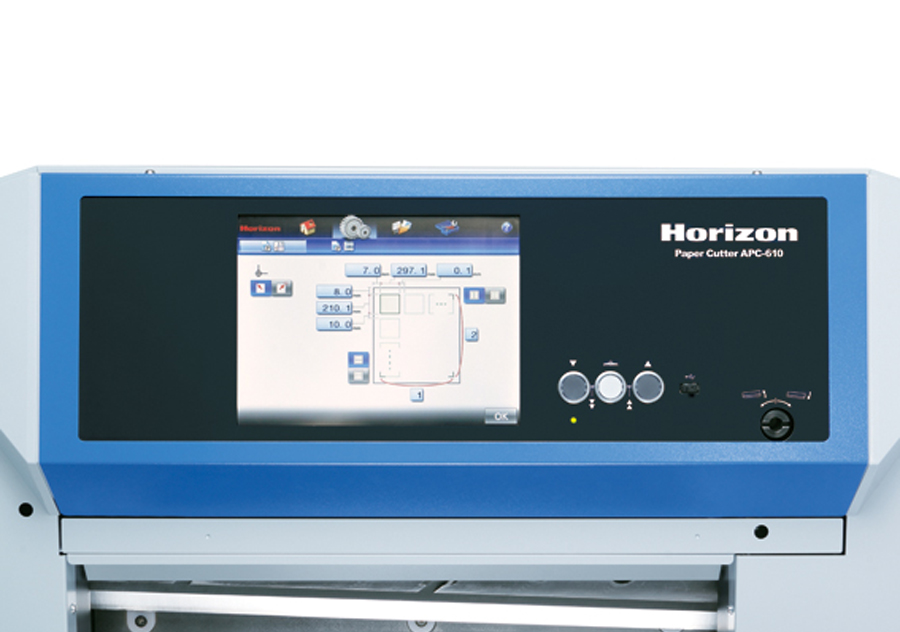

Easy Operation – The color touchscreen is intuitive and icon-based for user-friendly operation. The Operation, Setting and Information Screens are used for efficient and accurate operation.

Safety – The APC-610 is activated only when the two cut buttons are simultaneously pressed. Also, if the standard equipped area sensors detect any object, the cutting motion will stop immediately.

JDF Workflow – The system can be further enhanced with Horizon's pXnet bindery control system which integrates JDF workflow from upstream devices.

Specifications

Model APC-610
Cutting Width Max. 610 mm or 24.0”
Cutting Height Max. 100 mm or 3.93” (95 mm or 3.74” using the support plate)
Cutting Depth Max. 620 mm or 24.4”

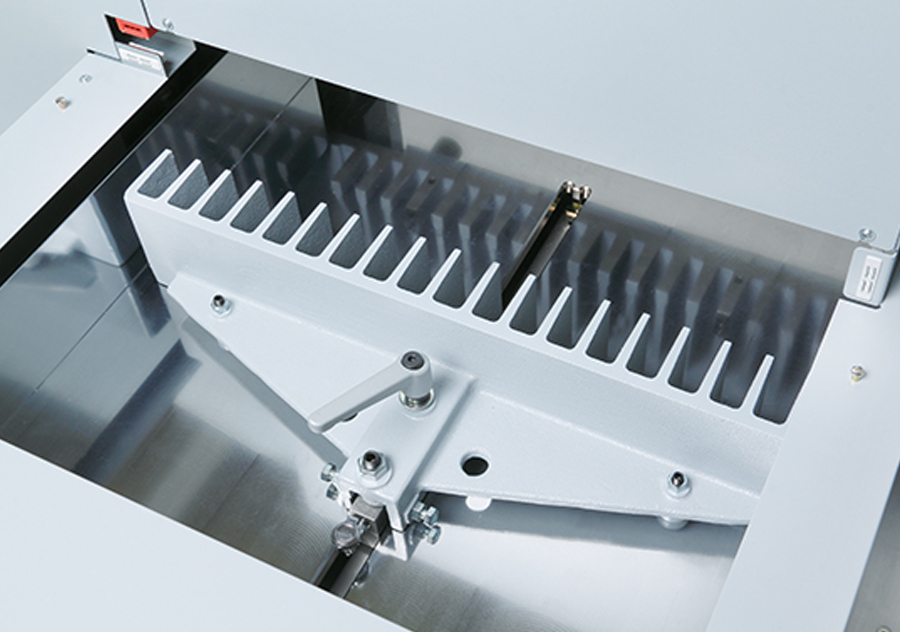

Min. 25 mm or 0.98” (65 mm or 2.56” using the support plate)
