Product Brochure

Tandem Stacker ST-60

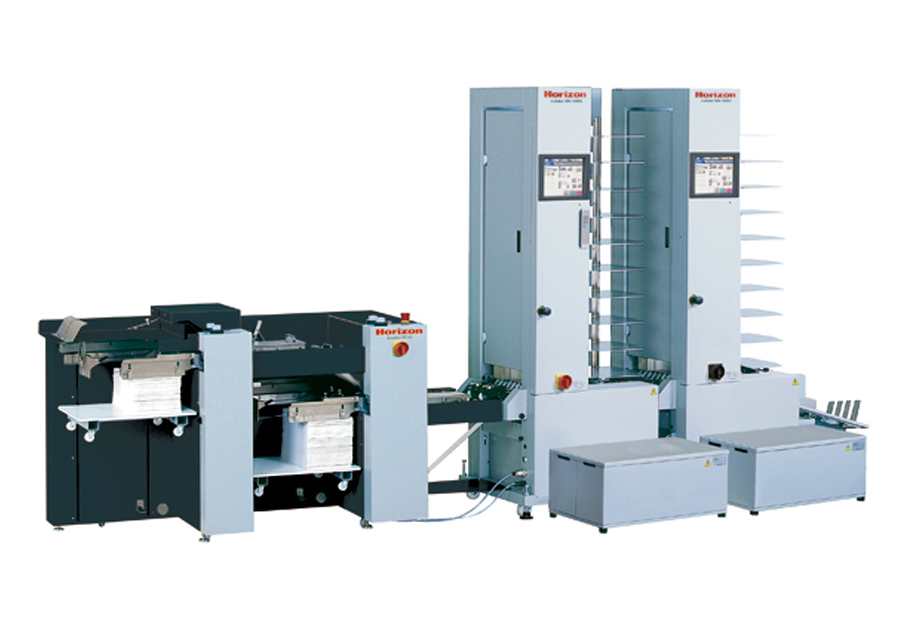

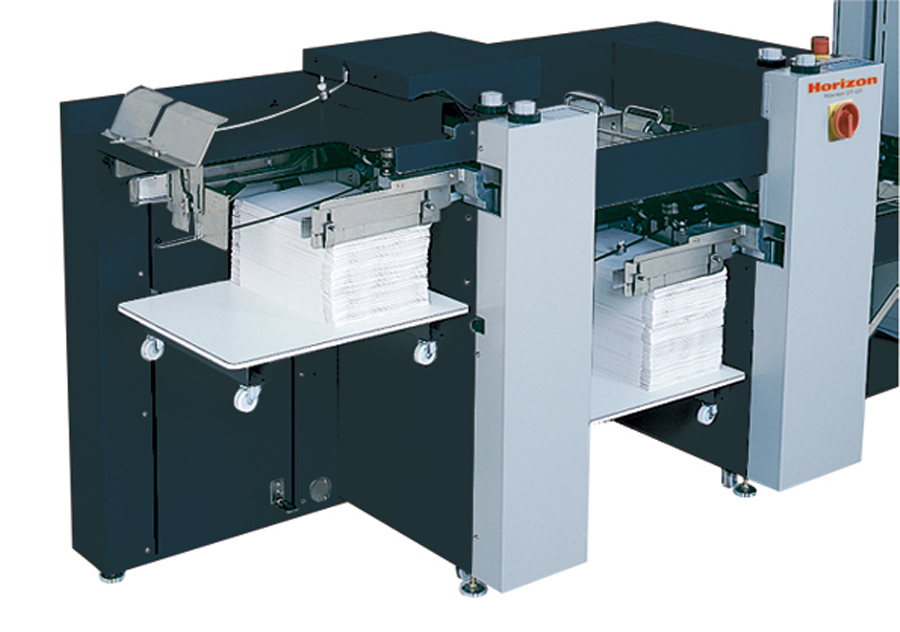

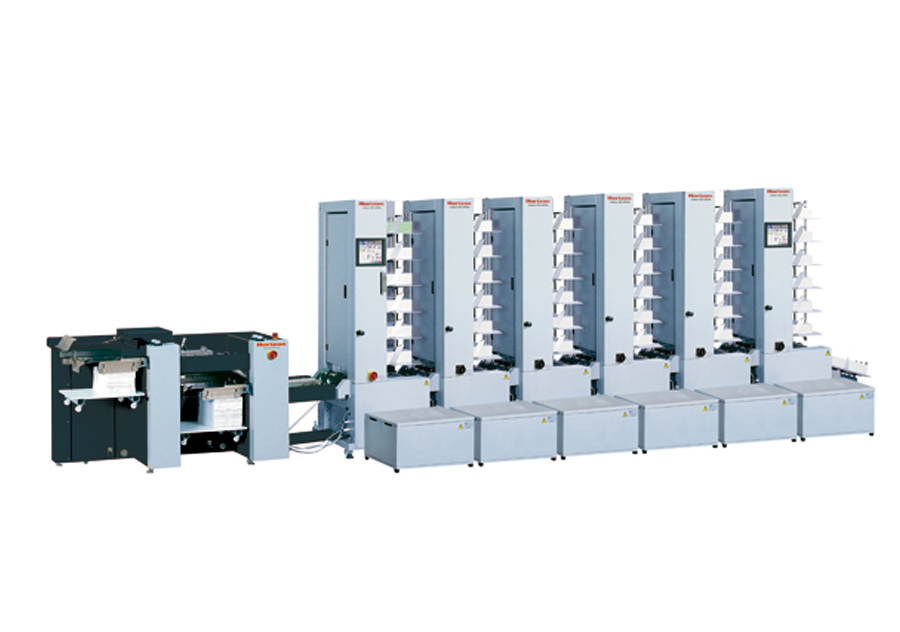

Connected between the collating and bookletmaking systems, the ST-40 serves as a high-capacity offset or straight stacking device.

– Errored sets are delivered to the built-in reject tray for nonstop operation.

– A continuously cycling tail jog keeps all sheets well positioned for superior stack quality.ality.

Specifications

Model ST-60
Sheet Size Width x Length
Max. 350 x 500 mm or 13.8” x 19.7”
Min. 182 x 128 mm or 7.2” x 5.0”
Sheet Weight Range 52 to 208 gsm
Production Speed 2-tray: 8,000 sets per hour (A4 or 8.5” x 11” / 10 sheets / off-set stacked)
1-tray: 5,000 sets per hour (A4 or 8.5” x 11” / 10 sheets / off-set stacked)
1-tray: 8,000 sets per hour (A4 or 8.5” x 11” / 10 sheets / straight stacked)
Stack Capacity Right Tray (A): 360 mm or 14.1”
Left Tray (B): 580 mm or 22.8”
Max.Transport Thickness 6 mm/ 0.24”
