Connectable Collators: VAC-1000, VAC-600H, SAC-150
Connectable Stitchers: SPF-200A, SPF-200L, StitchLiner5500

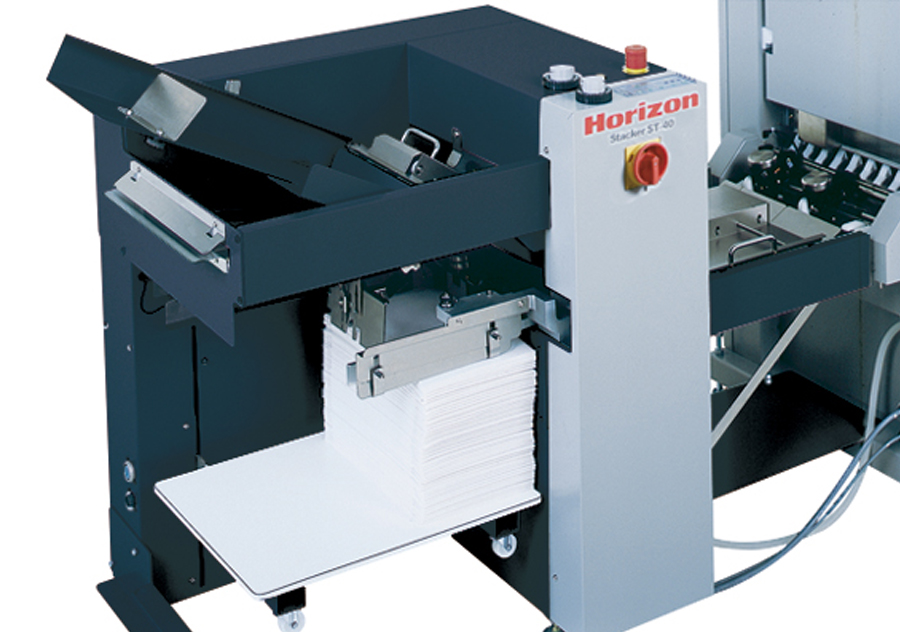

Bypass Stacker ST-40

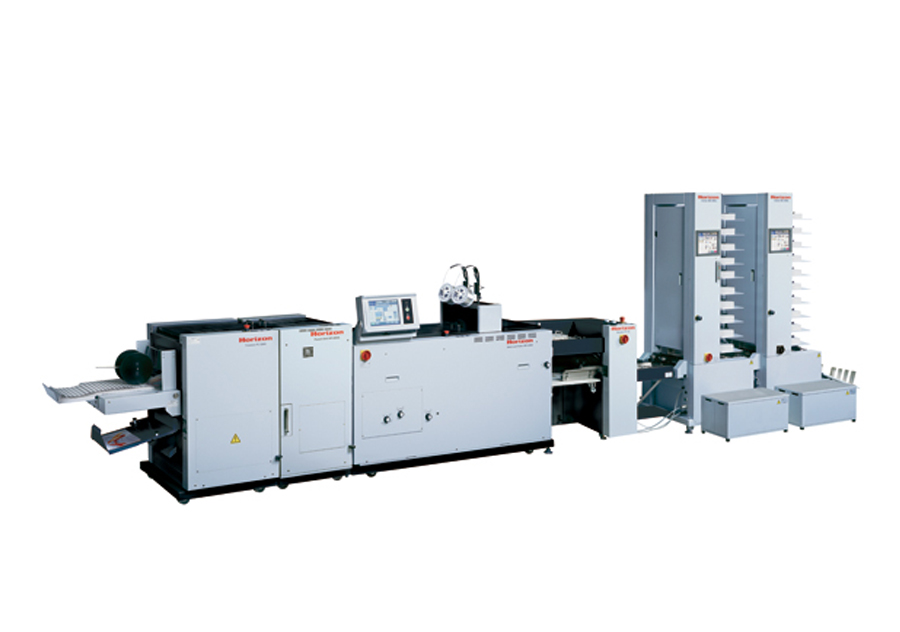

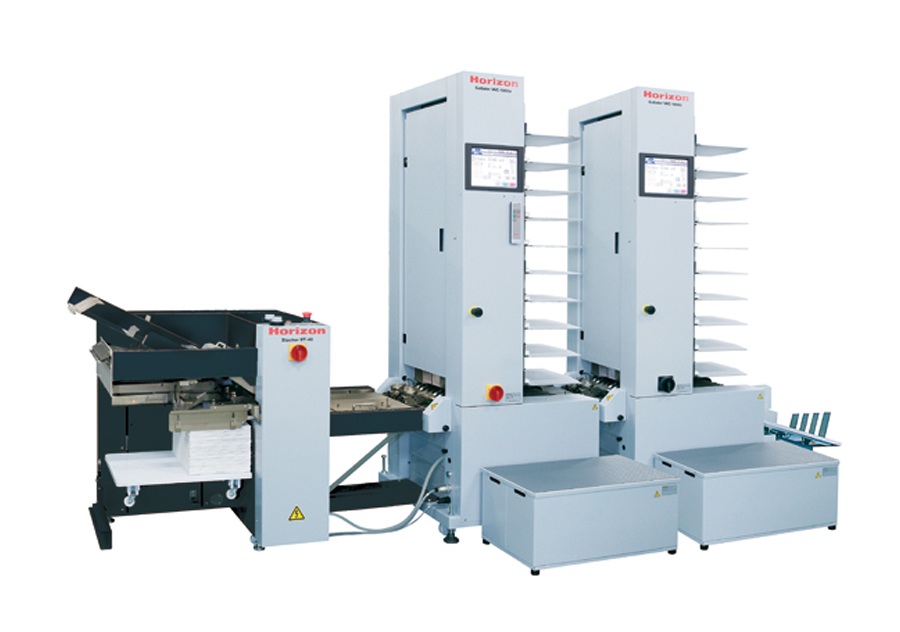

Connected between the collating and bookletmaking systems, the ST-40 serves as a high-capacity offset or straight stacking device.– Errored sets are delivered to the built-in reject tray for nonstop operation.
– A continuously cycling tail jog keeps all sheets well positioned for superior stack quality.
Specifications
| Model | ST-40 |
|---|---|
| Sheet Size |
Width x Length Max. 350 x 500 mm or 13.8” x 19.7” Min. 182 x 128 mm or 7.2” x 5.0” |
| Sheet Weight Range | 52 to 208 gsm |
| Production Speed |
8,000 sets per hour(A4 or 8.5” x 11” / 10 sheets / straight stacked) 5,000 sets per hour(A4 or 8.5” x 11” / 10 sheets / off-set stacked) |
| Stack Capacity | 360 mm/ 14.1” |
| Max.Transport Thickness | 6 mm/ 0.24” |
