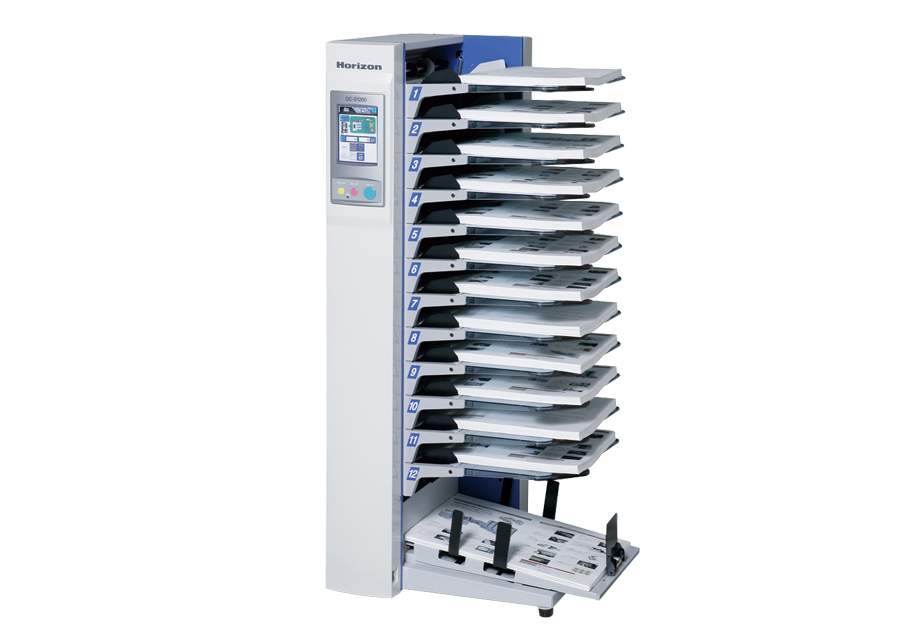

Table-top Collator QC-S1200

The QC-S1200 is a high quality, high speed collating machine with efficient operation.

Efficient Programming Functions – Double Cycle：This feature increases the productivity and operator efficiency with non-stop production and it gives ample time for bin reloading. When any bin in the first section empties, the feeding switches over to the second section and continues collating.

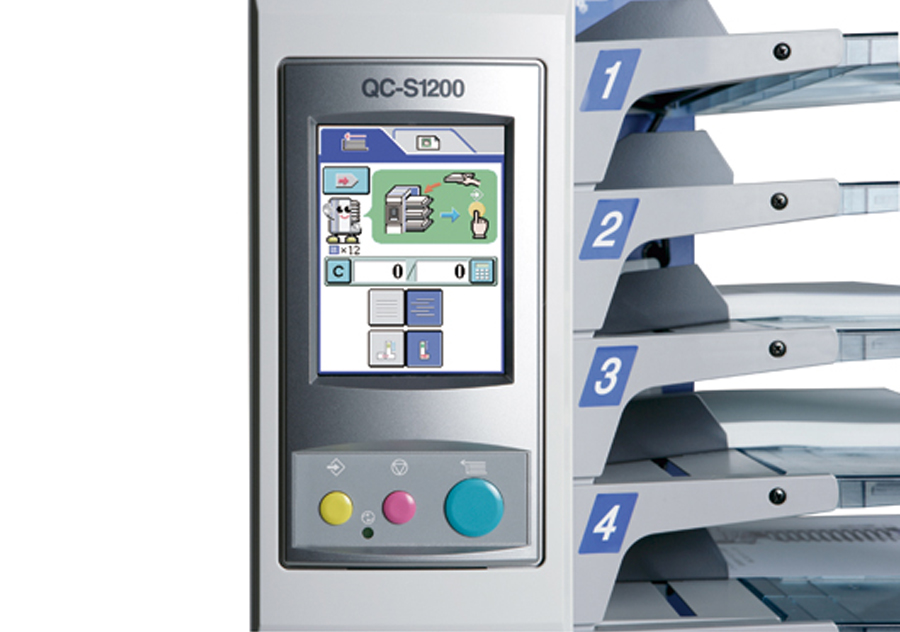

Intuitive Operation with Color LCD Touchscreen – The QC-S1200 is equipped with a 5.7 inch color LCD touchscreen. Operation and program settings can be done through the touchscreen. In addition, superior usability is ensured with the navigation function and the troubleshooting screen to monitor the operating procedure and to find the cause of any problems.

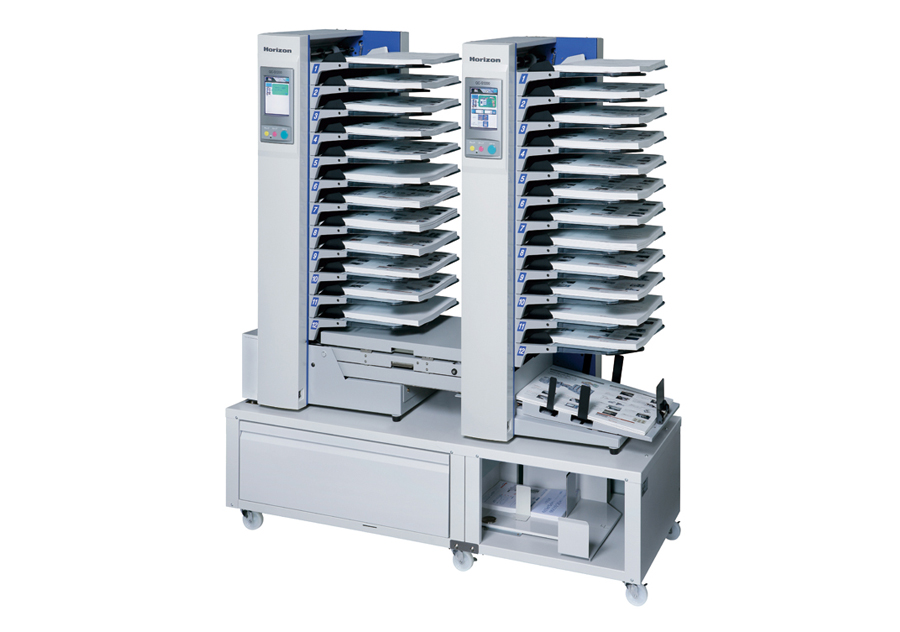

Space-saving 12-bin Collator – Multiple-page collating can be performed in the small foot print. The optional extension module QC-S1200F can be added for up to 24 collating stations.

Specifications

Model	QC-S1200
Number of Bins	12 bins Extention Module (QC-S1200F) allows to increase up to 24 bins.
Sheet Feeding System	Friction Feed
Sheet Size	Width x Length Max. 320 x 450 mm/ 12.59” x 17.71”(W320 mm/ 12.59” available in single collator only / Up to W305 mm/ 12.00” collating with the extention module) Min. 138 x 175 mm/ 5.44” x 6.89” A3, A4, A5 11” x 17”, 8.5” x 14”, 8.5” x 11” and 5.5” x 8.5”
Sheet Weight Range	52.3 to 128 gsm
Bin Pile Height	30 mm/ 1.18"
Production Speed	Max. 50 Hz : 120 sets per minute 60 Hz : 146 sets per minute (A4 / 8.5” x 11”, Straight Stack, 3 sheets) 65 sets per minute (A4 / 8.5” x 11”, Offset Stack, 50 Hz : 6 sheets / 60 Hz : 10 sheets)
