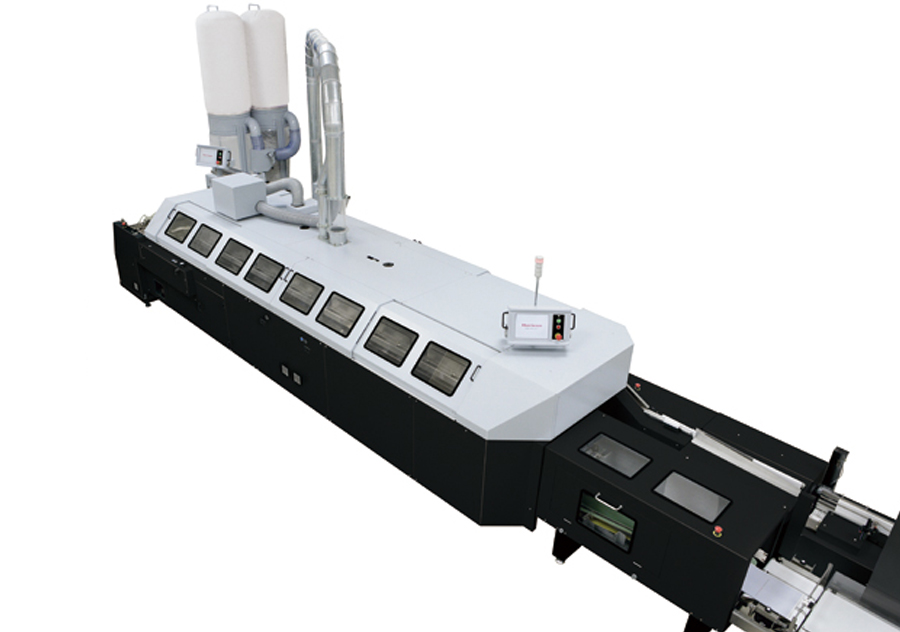

Perfect Binder SB-17/SB-17F

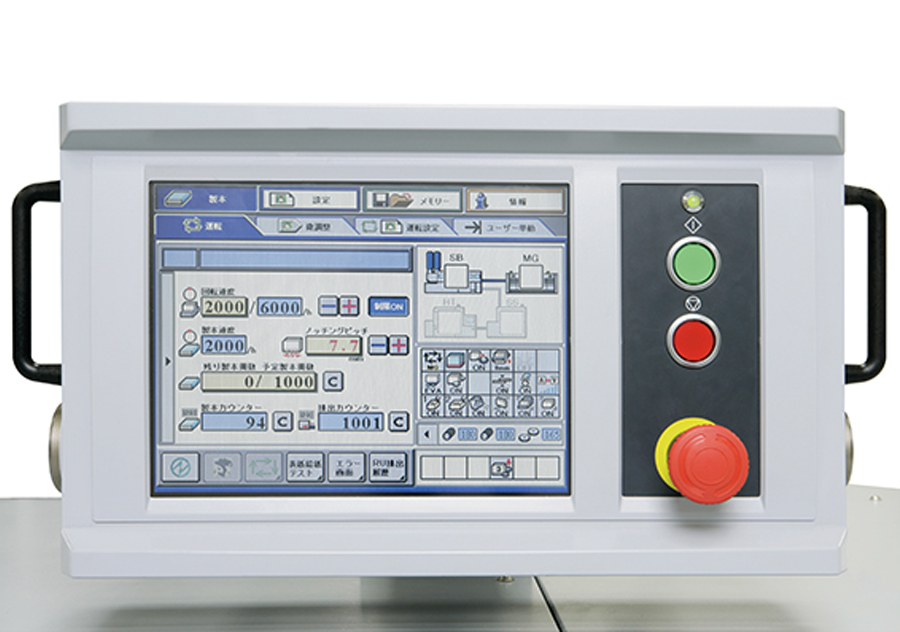

Highly accurate automated set-up is performed with simple and easy operation.– Book production of up to 6,000 books per hour can be achieved.
– Book production of up to 6,000 books per hour can be achieved.

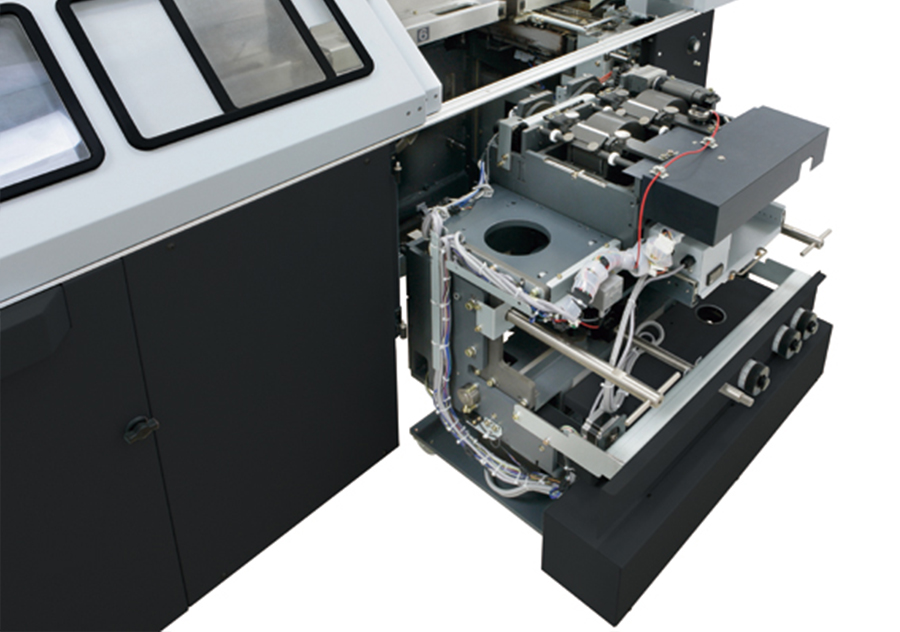

– EVA tank provides exceptional glue application, even at high speed, thanks to 3 application rollers and 1 scraper roller on the EVA glue tank.
– Two milling stations provide a versatile range of spine milling preparations. The system can also produce string-shaped milling powder for easier recycling.
Specifications
| Model | SB-17 / SB-17F |
|---|---|
| Book Block Size |
Spine Length x Fore-edge Length In-line Portrait: Max. 385 x 275 mm or 15.157” x 10.826” Min. 148 x 105 mm or 5.827” x 4.134” (A6) Land Scape: Max. 250 x 320 mm or 9.842” x 12.598” Min. 135 x 185 mm or 5.315” x 7.284” (B6) Off-line Portrait: Max. 400 x 320 mm or 15.748” x 12.598” Min. 148 x 105 mm or 5.827” x 4.134” (A6) Land Scape: Max. 400 x 320 mm or 15.748” x 12.598” Min. 135 x 185 mm or 5.315” x 7.284” (B6) |
| Book Thickness | 2 to 50 mm or 0.08” to 2” |
| Cover Size |
Length x Width Max. 400 x 660 mm or 15.748” x 25.984” Min. 135 x 220 mm or 5.315” x 8.662” |
| Cover Weight Range |
SB-17 : Normal Paper: 82 to 302 gsm Coated Paper: 105 to 348 gsm SB-17F : Normal Paper: 82 to 302 gsm Art Paper / Coated Paper: 105 to 348 gsm |
| Cover Stack Height | Max. 130 mm or 5.1” |
| Production Speed | Max. 6,000 books per hour |
