Product Brochure

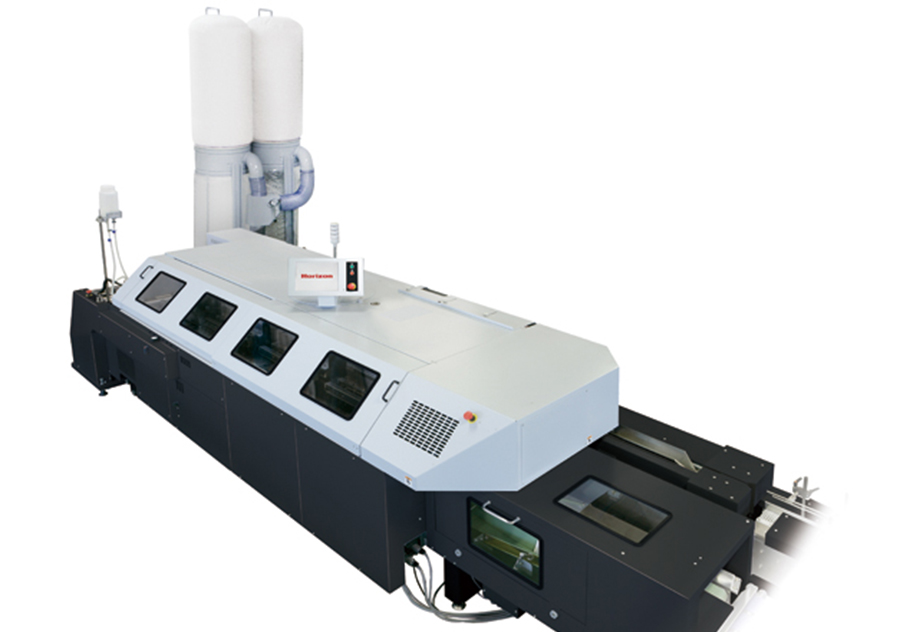

Perfect Binder
SB-09V/VF

Highly accurate automated set-up is performed with simple and easy operation.

– Book production of up to 4,000 books per hour can be achieved.

– Both EVA hotmelt and PUR hotmelt are supported by using the interchangeable melt tanks.

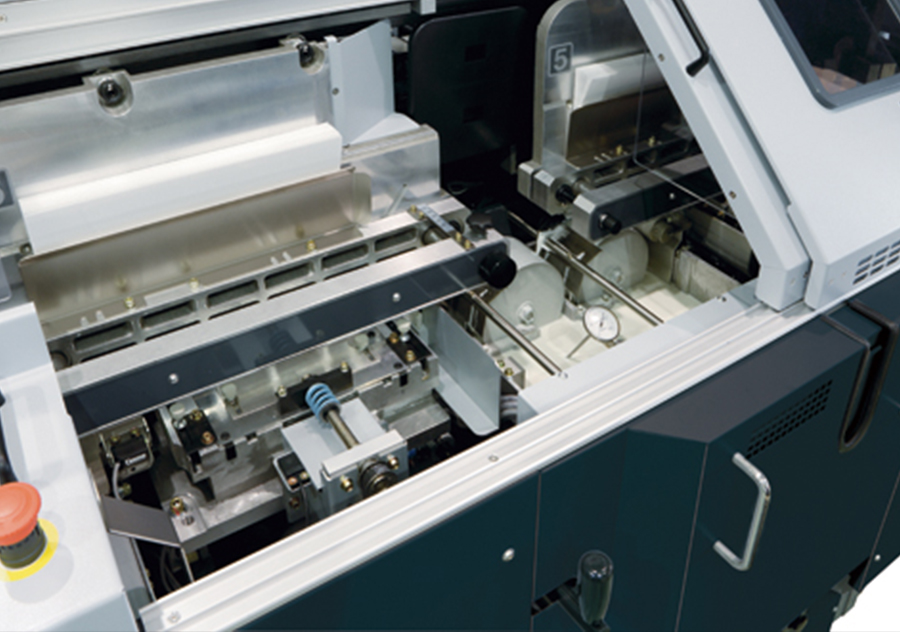

– Two application rollers ensure superior penetration of hotmelt glue.

– Quality control image checking cameras, thickness detector, weight checker and other optional quality control features.

Differences between the four system binders

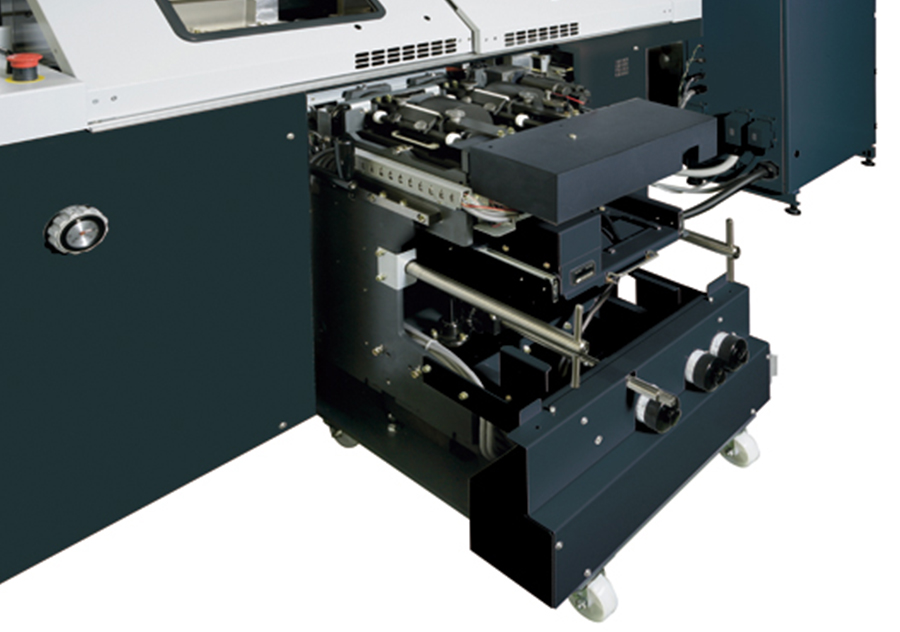

SB-09V : Fully automated variable system binder equipped with roller grip style cover feeder.
SB-09VF : SB-09V equipped with rotary grip style cover feeder.

Specifications

Model SB-09S/SF, SB-09V/VF
Binding Type Binding with milling, Binding without milling and Pad binding
Number of Carriage Clamps 9
SB-09V/VF : Clamp width is adjusted automatically.
Book Block Size Spine Length x Fore-edge Length
Inline:Portrait
Max. 330 x 250 mm or 12.9” x 9.8” Min. 148 x 105 mm or 5.9” x 4.2”
Offline:Portrait
Max. 400 x 280 mm or 15.7” x 11.0” Min. 148 x 105 mm or 5.9” x 4.2”
Offline:Land Scape
Max. 330 x 320 mm or 12.9” x 12.5” Min. 135 x 185 mm or 5.4” x 7.3”
Book Thickness 1 to 45 mmor 0.04” to 1.77” (depending on conditions)
Cover Size Length x Width
Max. 400 x 660 mm or 15.7” x 25.9”
Min. 135 x 220 mm or 5.4” x 8.7”
Cover Weight Range Normal Paper : 82 to 302 gsm
Coated Paper : 105 to 348 gsm
SB-09S / SB-09V : Folded covers cannot be fed.
SB-09SF / SB-09VF : Folded covers can be fed.
Cover Stack Height Max. 130 mm or 5.1”
Production Speed Max. 4,000 books per hour
