Product Brochure

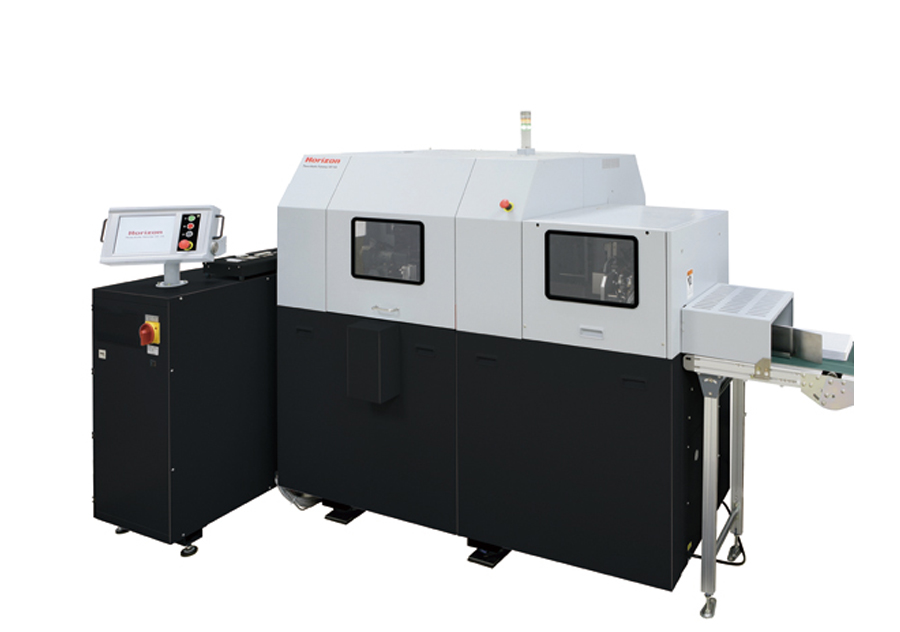

Three-knife Trimmer HT-110

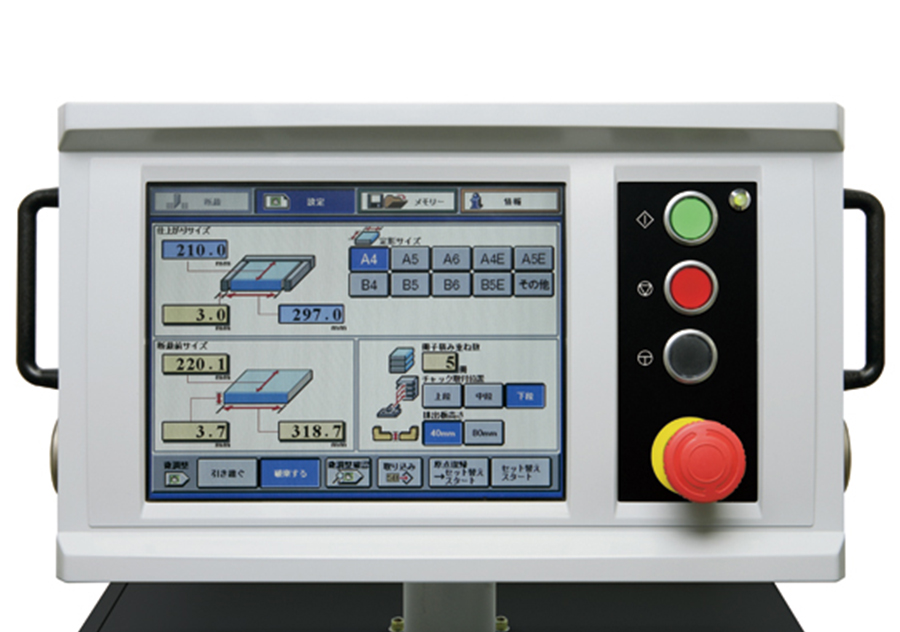

Highly accurate set-ups are performed with easy and simple operation.

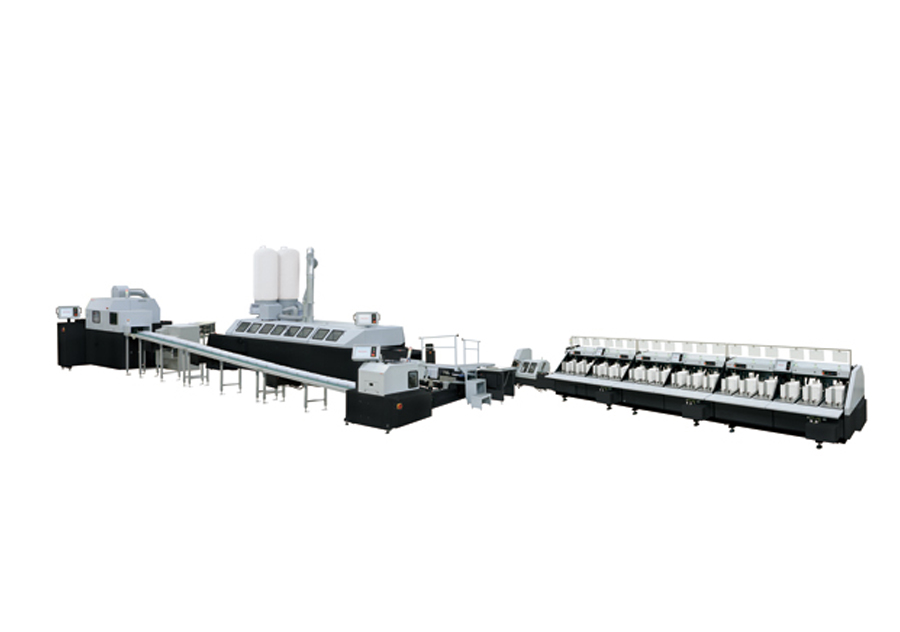

– Trimming cycle can be adjusted in 13 stages from 400 to 1,600 cycles per hour. By accumulating 3 books at once at the stream stack orientator, productivity of 4,000 books per hour can be achieved.

– Rigid framing and durable structure provides the utmost in trimming accuracy.

Specifications

Model HT-110
Untrimmed Book Size Spine Length x Fore-edge Length
Max. 410 x 320 mm or 16.14” x 12.59” Min. 148 x 105 mm or 5.83” x 4.14”
Finished Book Size Spine Length x Fore-edge Length
Max. 366 x 300 mm or 14.40” x 11.81” Min. 145 x 103 mm or 5.71” x 4.05”
Trim Width Fore-edge : 45 mm or 1.77” (Maximum trim width for fore-edge is 23 mm/ 0.90” when the finishing size is A4E-Landscape.)
Top-Bottom : 30 mm or 1.18
Trim Height 2 to 100 mm or 0.079” to 3.93”
Production Speed 400 to 1,600 cycles (Adjustable in 13 steps)
