Variable Trimmer HT-1000V

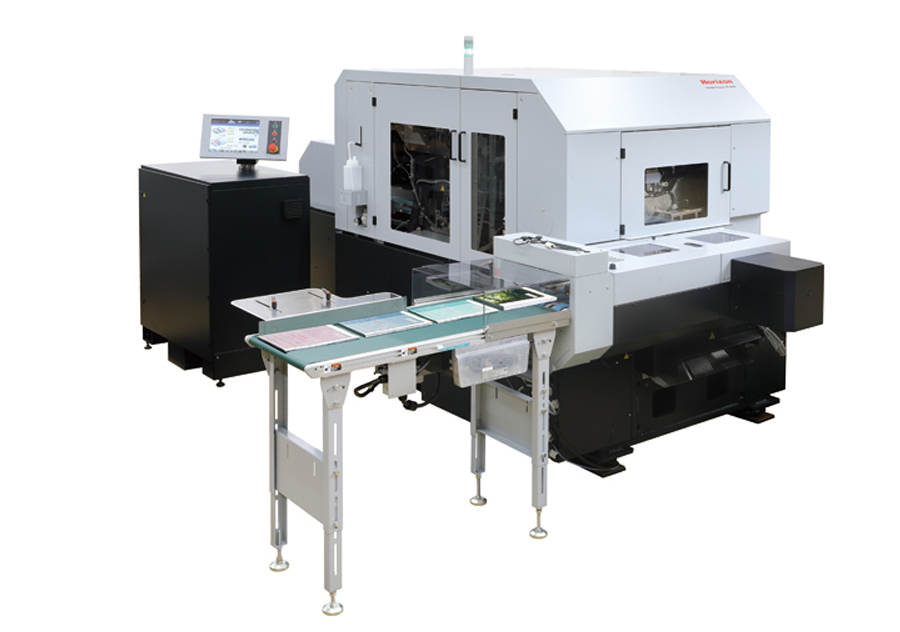

The Horizon HT-1000V three-knife trimmer achieves zero make-ready on book trim size and thickness changes. Well suited for shortrun production, and book of one production can also be achieved through barcode driven set-up.

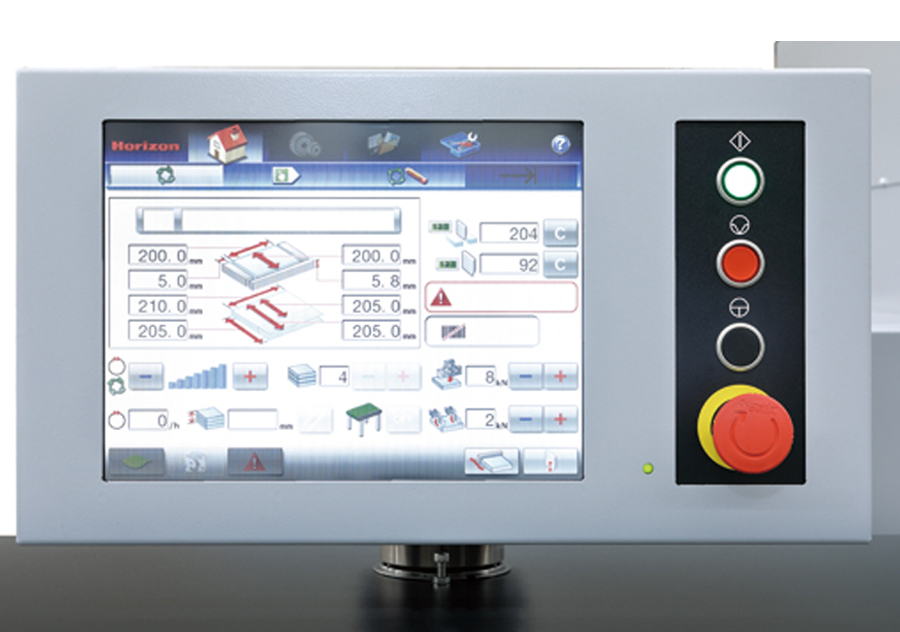

Automated set-up – The HT-1000V is set-up automatically on the fly by reading a barcode at the entrance of the trimmer. The system also is capable of automatic set-up from the operator panel for same size production runs.

Variable size trimming – One-to-one book production with variable sizes can be produced. Both untrimmed and trimmed sizes can be variable for true variable format production.

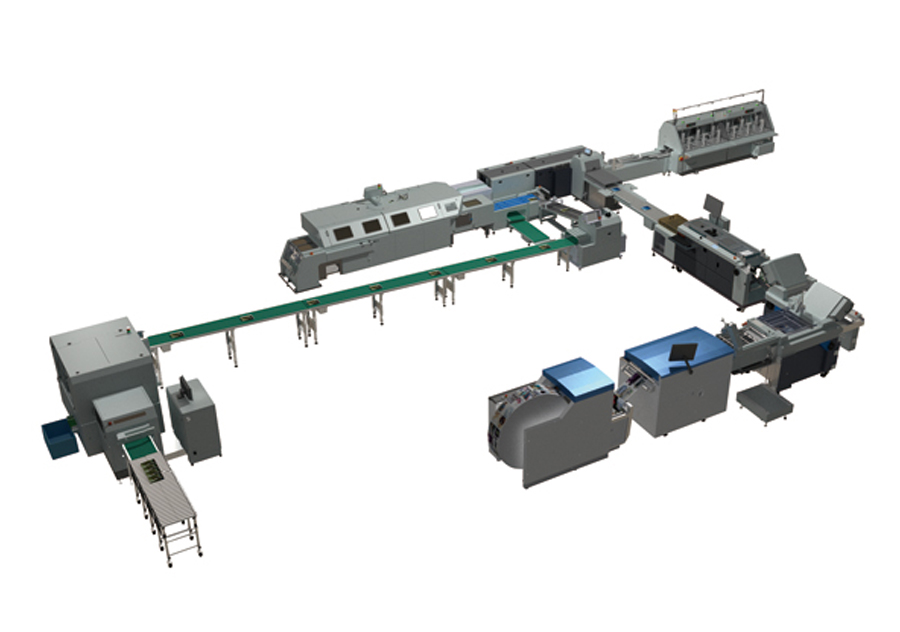

In-line Production – The HT-1000V can be placed in-line with Horizon perfect binders to maximize finishing automation and minimize human operation error.

High Speed Operation – Maximum cycle speed of the HT-1000V is 1,000 books / hr.
For example, A4 to A5 alternating sequence (book of one production) can be *950 books / hr.
(* Production speed depends on book condition and preparation of untrimmed books.)

MANAGE YOUR BINDERY WITH HORIZON'S BINDERY CONTROL SYSTEM – The system can be enhanced with automated workflow from upstream to post-press with iCE LiNK, which uses cloud technology, Horizon's post-press management system.

Specifications

Model HT-1000V
Untrimmed Book Size Max. Spine Length 350 x Fore-edge Length 320 mm/ 13.780” x 12.600”
Limitation: The maximum length from the center to top or bottom is 175 mm/ 6.889”.
Min. Spine Length 148 x Fore-edge Length 105 mm/ 5.825” x 4.130”
Limitation: The minimum length from the center to top or bottom is 74 mm/ 2.91”.
Trim Width Fore-edge: Max. 110 mm/ 4.330” Min. 1 mm/ 0.04”
Top and bottom: Max. 80 mm/ 3.150” Min. 1 mm/ 0.04”
Trim Height 1 to 65 mm/ 0.04” to 2.560”
Production Speed 400 to 1,000 cycles per hour (Higher production can be reached withpiled books.)
In case of the following trimmed condition, the production speed can reaches to 1,000 cycles per hour.
- Constant untrimmed size to constant fi nished size
- Constant untrimmed size to A4/letter size through A5/half letter fi nished size
