CRB-160

Creaser

Product Brochure

Creaser CRB-160

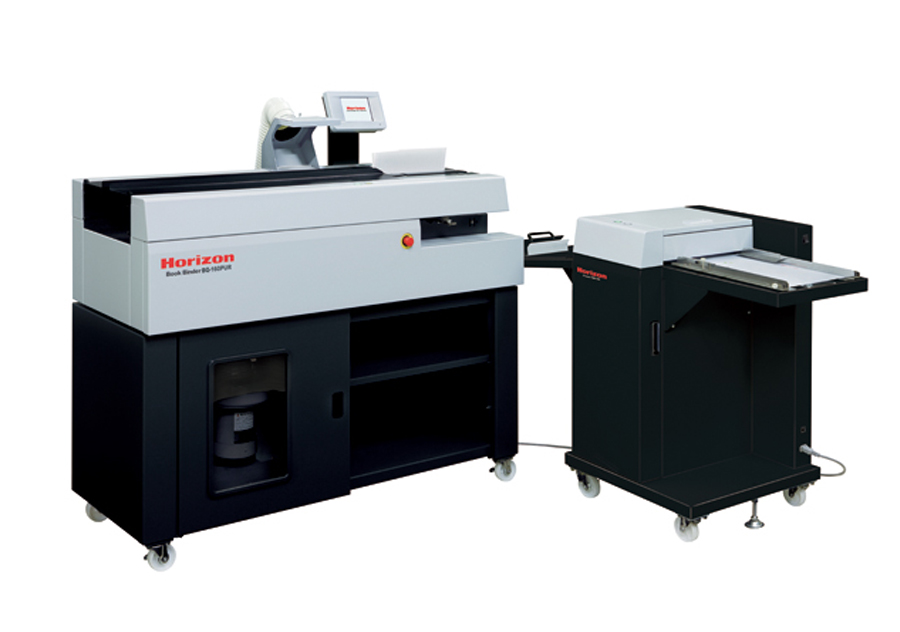

A cover creaser that communicates with BQ-160 binder!

– Impact scoring position is set automatically according to the book thickness inserted into the BQ-160.

– Clean and sharp impact creases can be made even with heavier and laminated stock.

– Stand alone model is also available with an integrated touch screen operation console.

– A wide variety of impact scoring patterns can be selected from the touch screen.

– Suitable for crease covers, restaurant menus, greeting cards and all digital print applications.

Specifications

Model CRB-160
Sheet Feeding System Manual Feed
Sheet Size Width x Length
Max. 364 x 650 mmor 14.33” x 25.59”
Min. 140 x 180 mmor 5.52” x 7.09”
12 x 18”, A3, 11” x 17”, JIS B4, 8.5 x 14”, A4, 8.5” x 11”, JIS B5, and A5
Sheet Weight Range Normal Paper, Coated Paper
81.4 to 407 gsm, 24 lb bond to 150 lb cover
Impact Creasing Mechanism One set of positive and negative
Number of Impact Crease Lines Max. Eight Creasing Lines
Production Speed Length 430 mmor 16.92”, Four Creasing Lines, 4 seconds per sheet
A4, short-edge feeding, one creasing line, 1.5 seconds per sheet
