BQ-480

Perfect Binder

Product Brochure

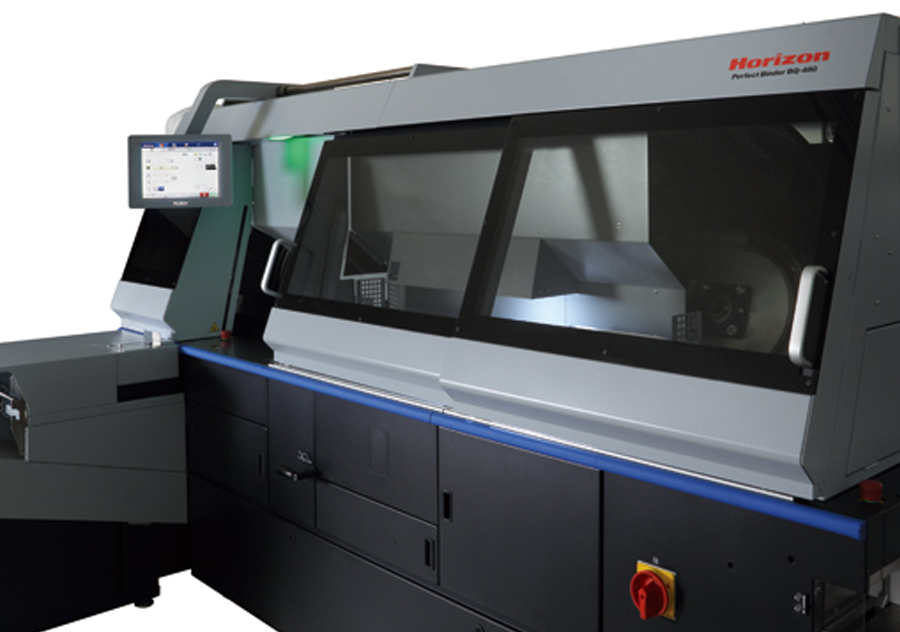

Perfect Binder BQ-480

New level of automation brings more efficient and higher quality production.

Higher Level of Automation – In addition to dimension based automation, the BQ-480 features customized automated setup accounting for paper type, signature vs. loose sheet, sewn book blocks, notch binding, and other key factors for higher quality with less effort.

Book of One Production – Maximum production speed of 800 books per hour for book of one production. (Production speed changes depending on thickness change from book to book.)

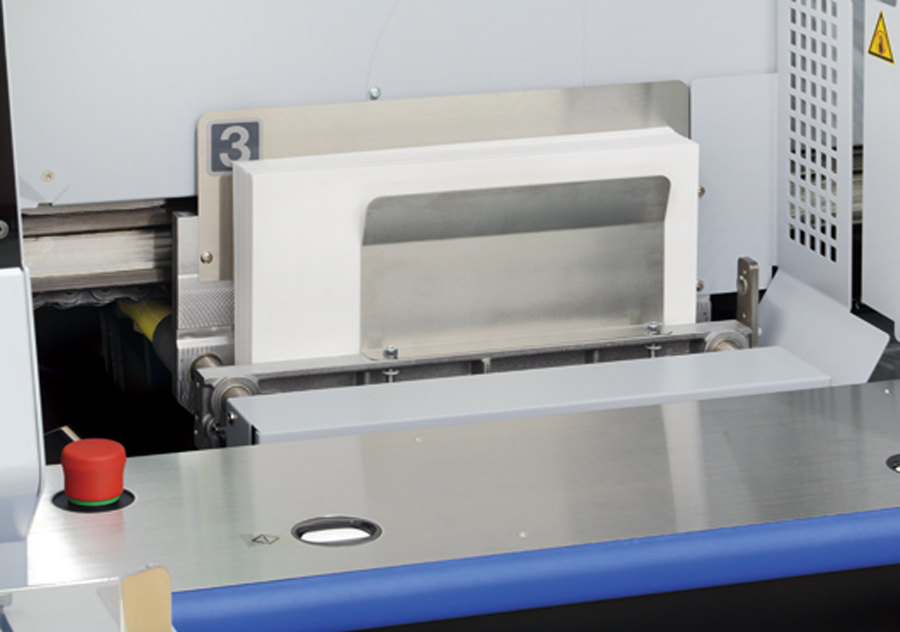

Gentle Book Delivery System – Uniquely designed book delivery mechanism delivers the book gently for high quality books, even with 65 mm(2.56”) thickness books or PUR bound books.

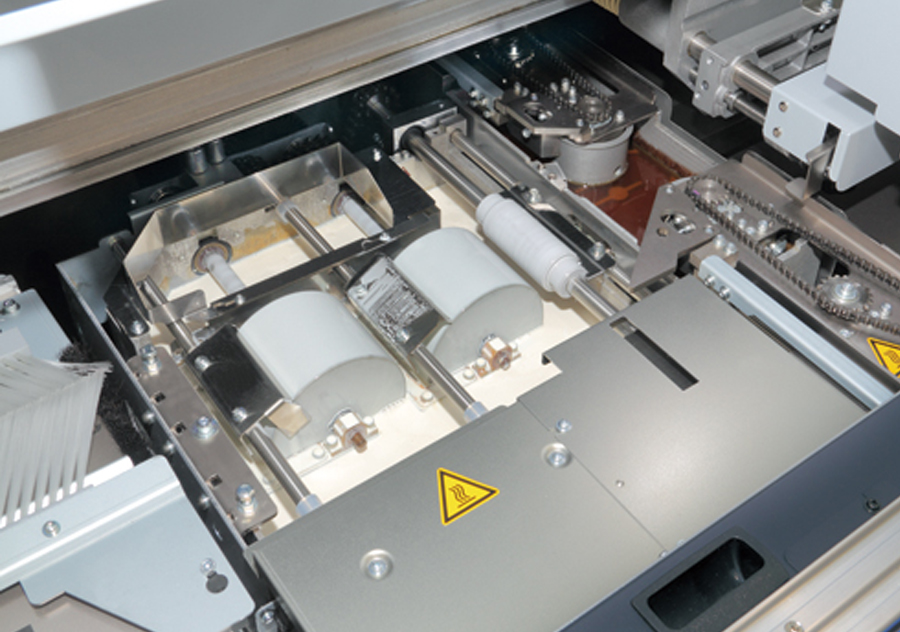

Selection of Glue Types – The BQ-480 supports both EVA hotmelt glue and PUR hotmelt glue. Two different tanks are available for each glue type.

Specifications

Model BQ-480
Binding Mode Binding with milling, Binding without milling and Pad binding
Number of Clamps 4
Book Thickness 1 to 65 mm/ 0.040” to 2.560”
Cover Weight Range Bond Paper 81.4 to 302.4 gsm / Coated Paper 104.7 to 348.9 gsm
Cycle Speed Max. 1,350 cycles per hour (EVA) Max. 1,000 cycles per hour (PUR)
